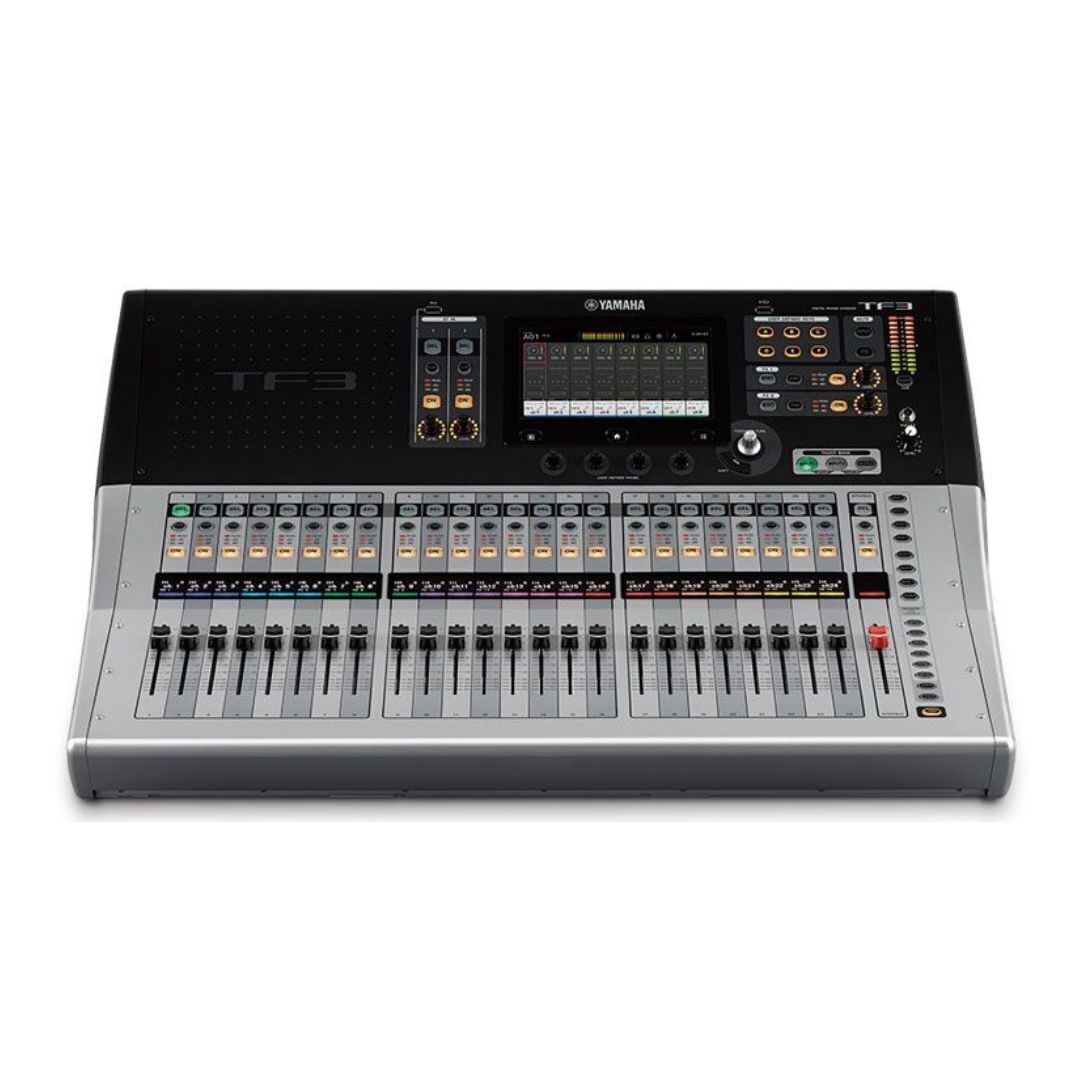

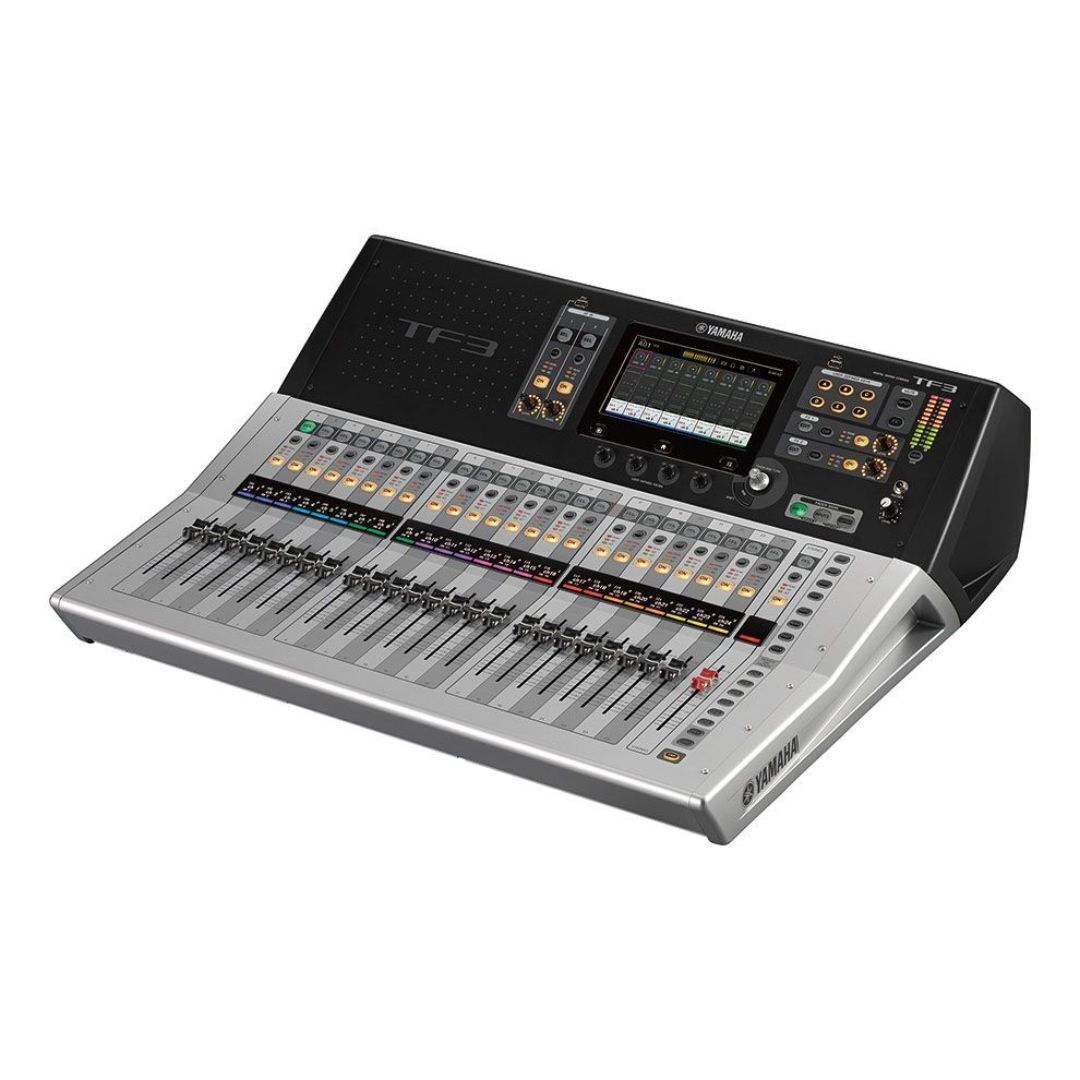

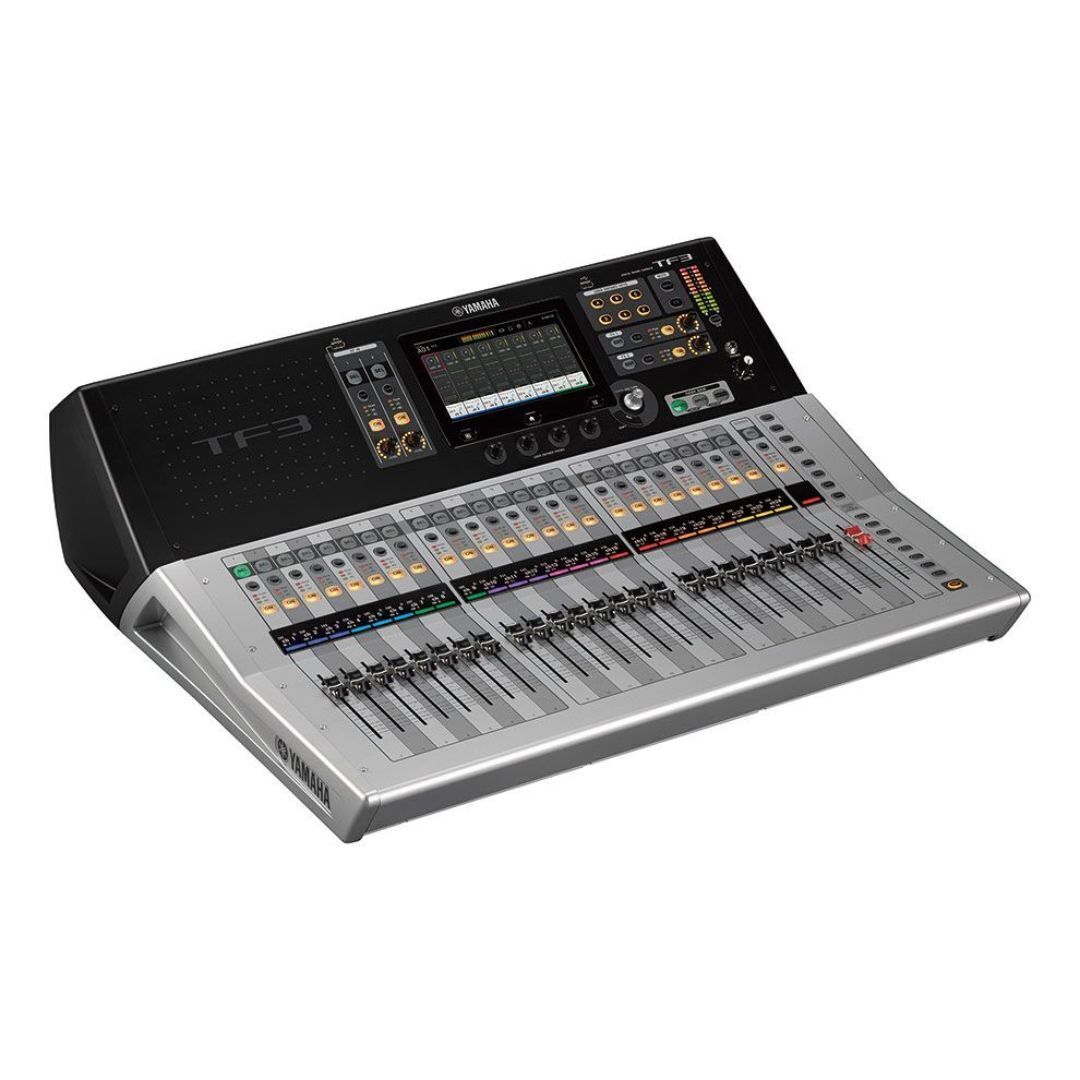

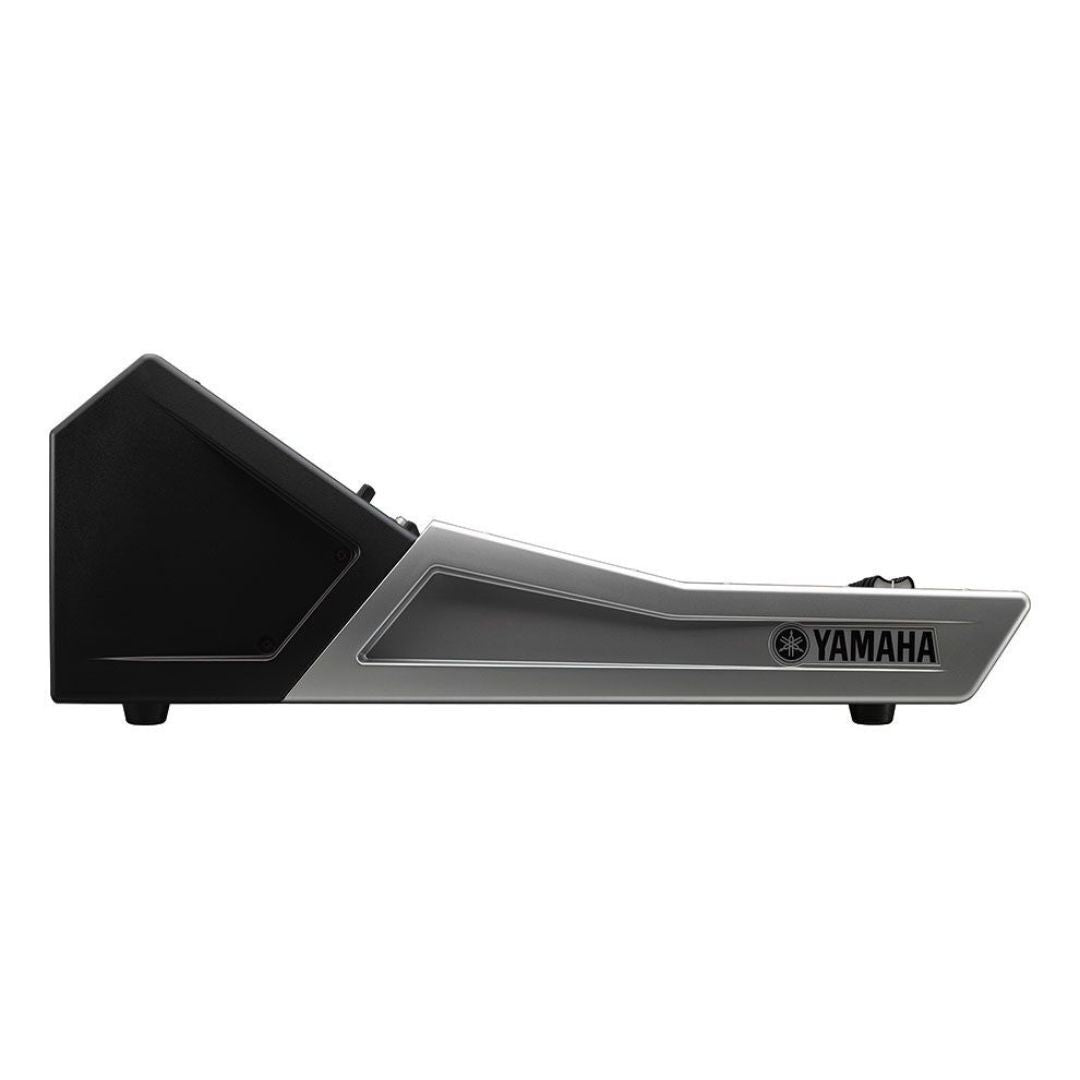

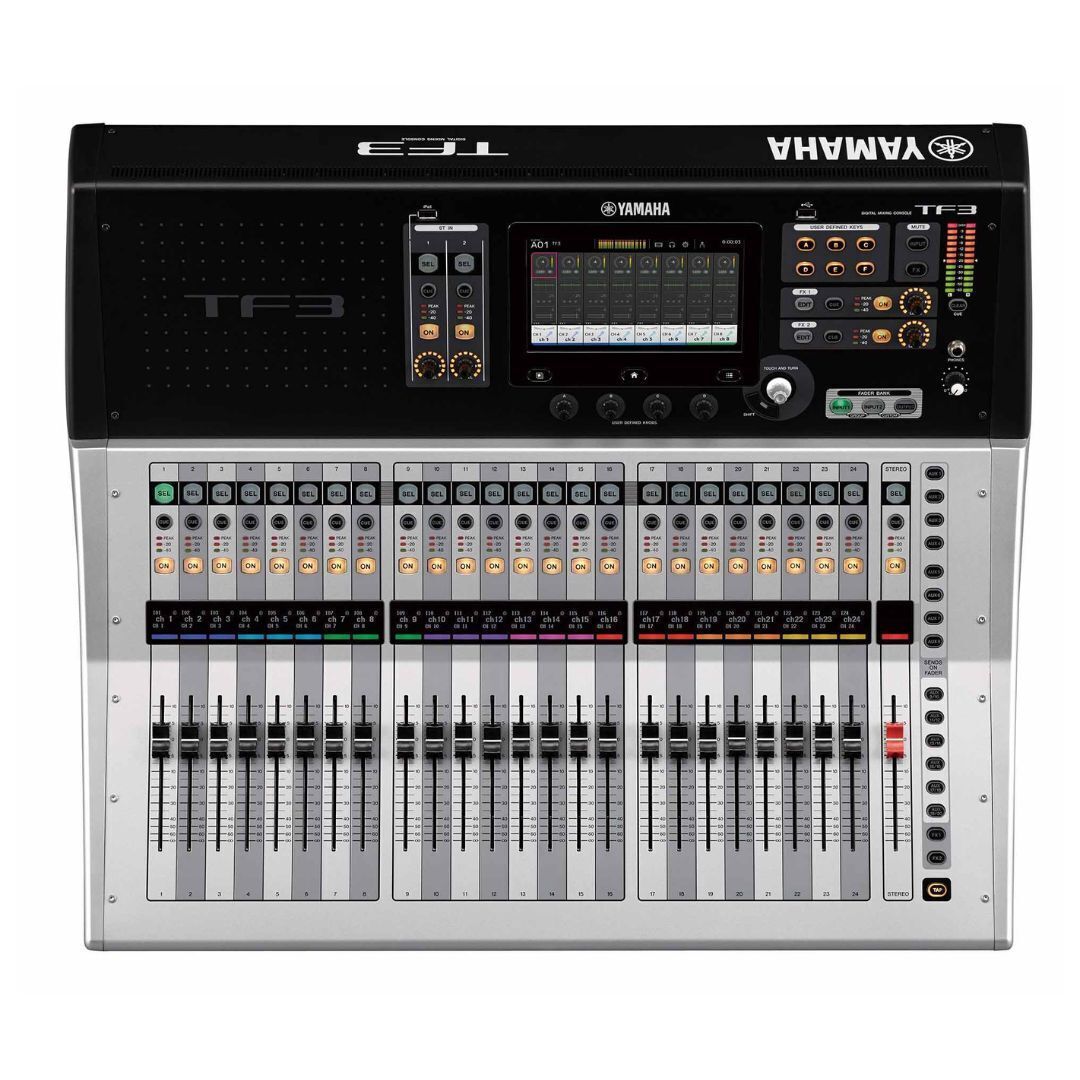

Yamaha TF3 24 Channel Digital Black Mixer with 48 Input Mixing Chan...
In developing the TF series Yamaha engineers built from
their existing base of acclaimed high-end mixer interfaces, adding intuitive
control in an interface optimized for the type of touch panel control that has
become a familiar feature in a wide range of applications. Effective gain,
compressor, and EQ setup require a considerable degree of skill and experience.
Even veteran engineers need to spend time on these important basic settings. In
addition to their intuitive user interfaces, the Yamaha TF3 Digital Mixer
includes several features that contribute to a faster, smoother setup of these
essential parameters.
Practical Presets and Scenes
The familiar Yamaha scene memory that stores mix settings for instant recall
when needed is included as always. There’s also a range of channel presets that
have been created in cooperation with leading microphone manufacturers and
eminent sound engineers, providing starting points that take you a long way
toward achieving great sound.
Design for Superior Visibility and Quick Operation
Separate software applications that allow wireless mixing, personal monitor
mixing, or offline setup of digital live mixing consoles have become fairly
common. The TF3 goes a step further with three dedicated apps - TF Editor, TF
StageMix, and MonitorMix - that feature user interfaces that seamlessly extend
the console’s own on any device.
A Natural Sound Foundation with Extra Creative Freedom
Faithful reproduction of the on-stage sound is the foundation, and then
creativity can take over. Yamaha’s unswerving approach to live sound
reinforcement is alive and well in the TF series.

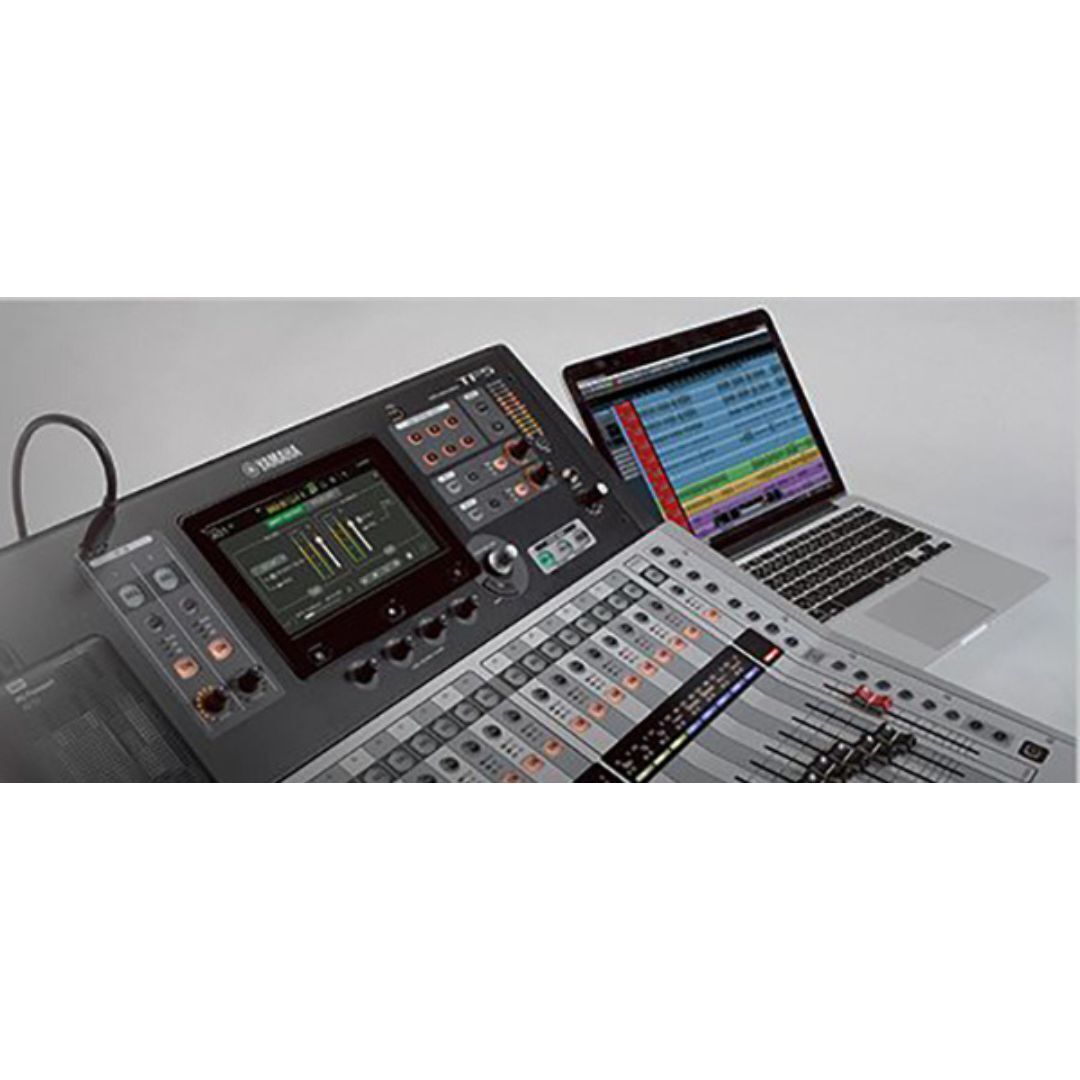

A Versatile Live Recording and Playback Solution for Any Application
TF consoles come supplied with Steinberg’s Nuendo Live Multitrack live
recording software, providing an easy way to simultaneously record up to 34
tracks to a computer connected to the console via USB 2.0. MP3 and WAV files
can be played back from USB storage devices, and audio from an iPhone or iPad
can be played back via a direct digital connection.
Fader
| Fader Configuration | 24 + 1 (Master) |
| Fader | 100 mm motorized, Resolution = 10-bit, +10 dB to -138 dB, -infinite dB all faders |
Mixing Capacity
| Input Channels | 48 (40 mono + 2 stereo + 2 return) |
| Aux Buses | 20 (8 mono + 6 stereo) |
| Stereo Buses | 1 |
| Sub Buses | 1 |
Input Channel Functions
| Input Channel Functions | 8 DCA Groups |
In/Out
| Inputs | 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) |
| Outputs | 16 (XLR) |
| Expansion Slots | 1 |
On-board Processors
| DSP | 8 Effects + 10 GEQ |
USB
| USB | 34x34 USB Audio Interface, 2-track recording via USB Storage Device |
Sampling Frequency Rate
| Internal | 48 kHz |
Signal Delay
| Delay | Less than 2.6 ms, Input to Omni Out, Fs=48 kHz |
Total Harmonic Distortion
| Harmonic Distortion | Less than 0.05% 20 Hz-20 kHz at +4 dBu into 600, Input to Omni Out, Input Gain=Min. (Measured with a -18 dB/octave filter at 80 kHz) |
Frequency Response
| Frequency Response | +0.5, -1.5 dB 20 Hz-20 kHz, refer to +4 dBu output at 1kHz, Input to Omni Out |
Dynamic Range
| Dynamic Range | 110 dB typ., DA Converter, 107 dB typ., Input to Omni Out, Input Gain=Min. |
Hum and Noise Level
| Equivalent Input Noise | -128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) |
| Residual Output Noise | -85 dBu, ST master off (Measured with an A-Weight filter) |
Crosstalk
| Crosstalk | -100 dB (Measured with a -30 dB/octave filter at 22 kHz), adjacent Input/Omni Out channels, Input Gain=Min. |
Power
| Power Requirements | 100-240V, 50/60 Hz |
| Power Consumption | 110W |
Dimensions and Weight
| Dimensions (WxHxD) | 716 mm (28.2 in) x 225 mm (8.9 in) x 599 mm (23.6 in) |
| Weight | 17.0 kg (37.5 lbs.) |
