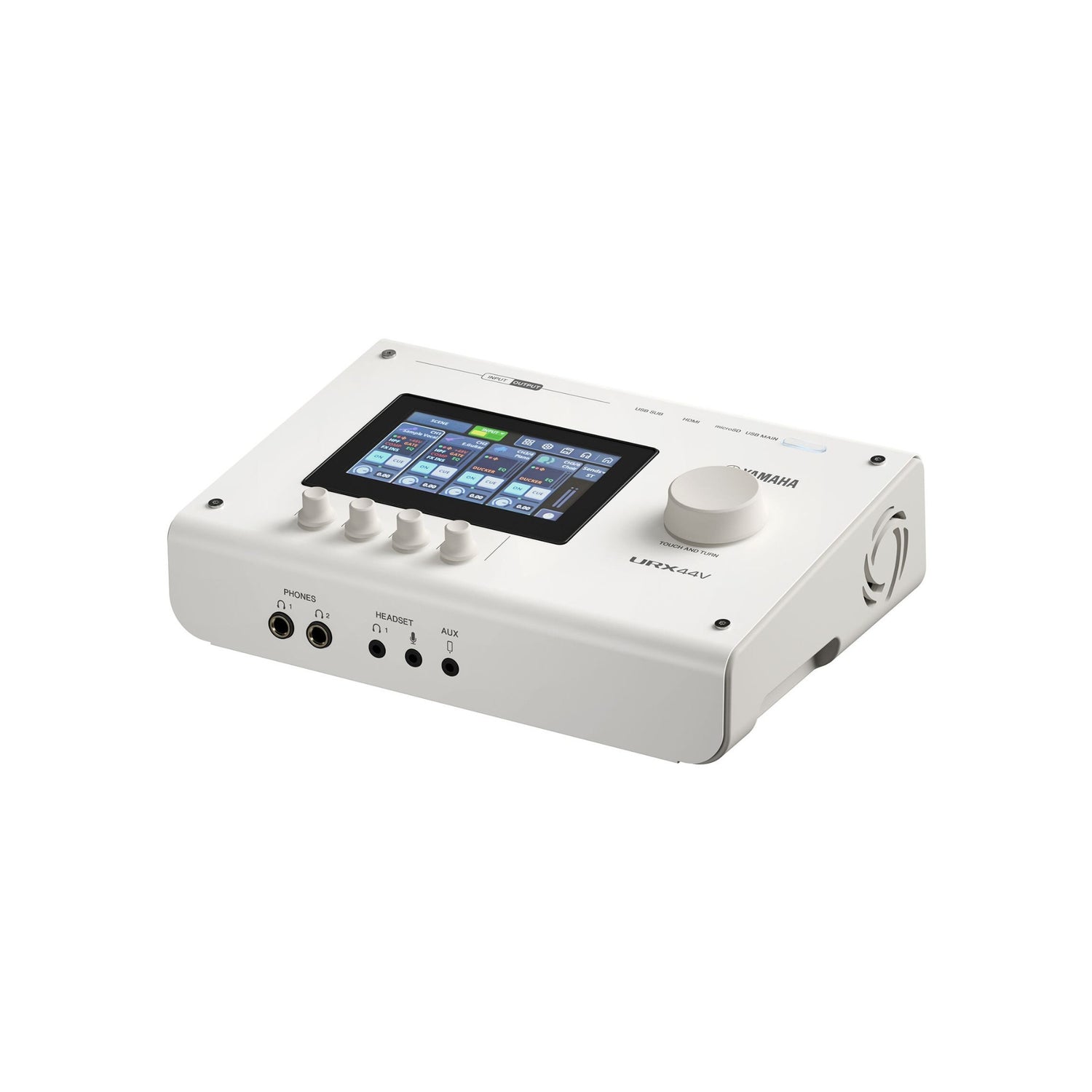

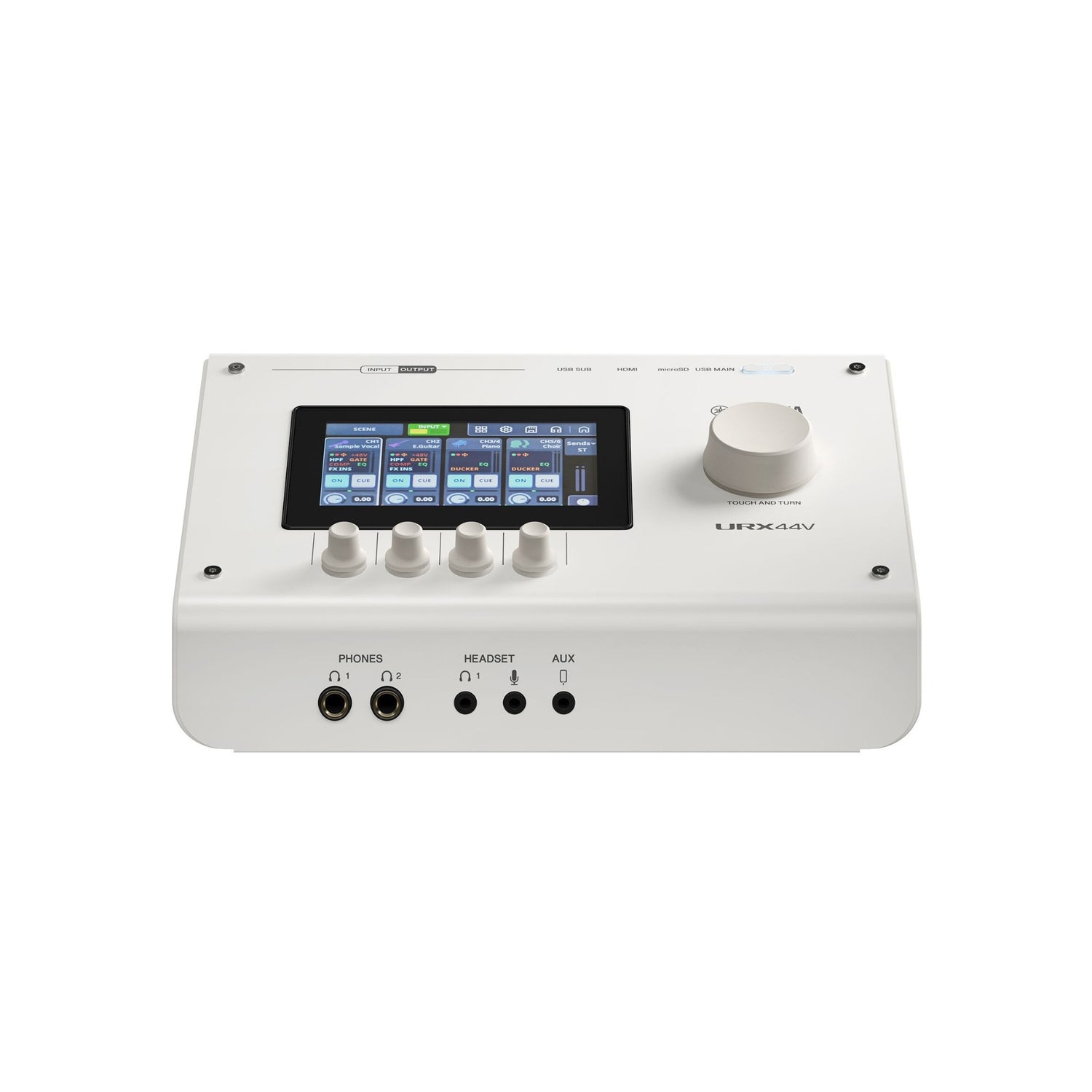

Yamaha URX44V 6 in/4 out Dual USB-C Audio/Video Interface (White)
Featuring an HDMI-USB capture function, the URX44V allows for a flexible new range of applications that require capturing or transmitting high definition video and audio from cameras, gaming consoles, or other HDMI output devices. Ideal for small-scale film productions, streaming live performances, producing a podcast with multiple personnel or guest interviews, or game streaming the professional-level audio quality, flexible I/O, and versatile, user-friendly functions of the URX44V will ensure your production looks and sounds every bit as good as you imagined.
Capture Every Moment
Equipped with Yamaha URX mic preamps delivering up to 78 dB gain, +48V phantom power for condenser microphones, Hi-Z support for direct guitar/bass input, ultra-low distortion, and a wide 125 dB dynamic range to capture every detail with precision and clarity.
Pristine, True Sound Reproduction
Premium AD/DA converters ensure pristine sound reproduction, while built-in DSP enables latency-free monitoring with onboard Gate, Compressor, EQ, Reverb, Amp Simulator, and Voice Changer (Pitch Fix) for real-time sound shaping.
Assistive Tools with Intuitive Control

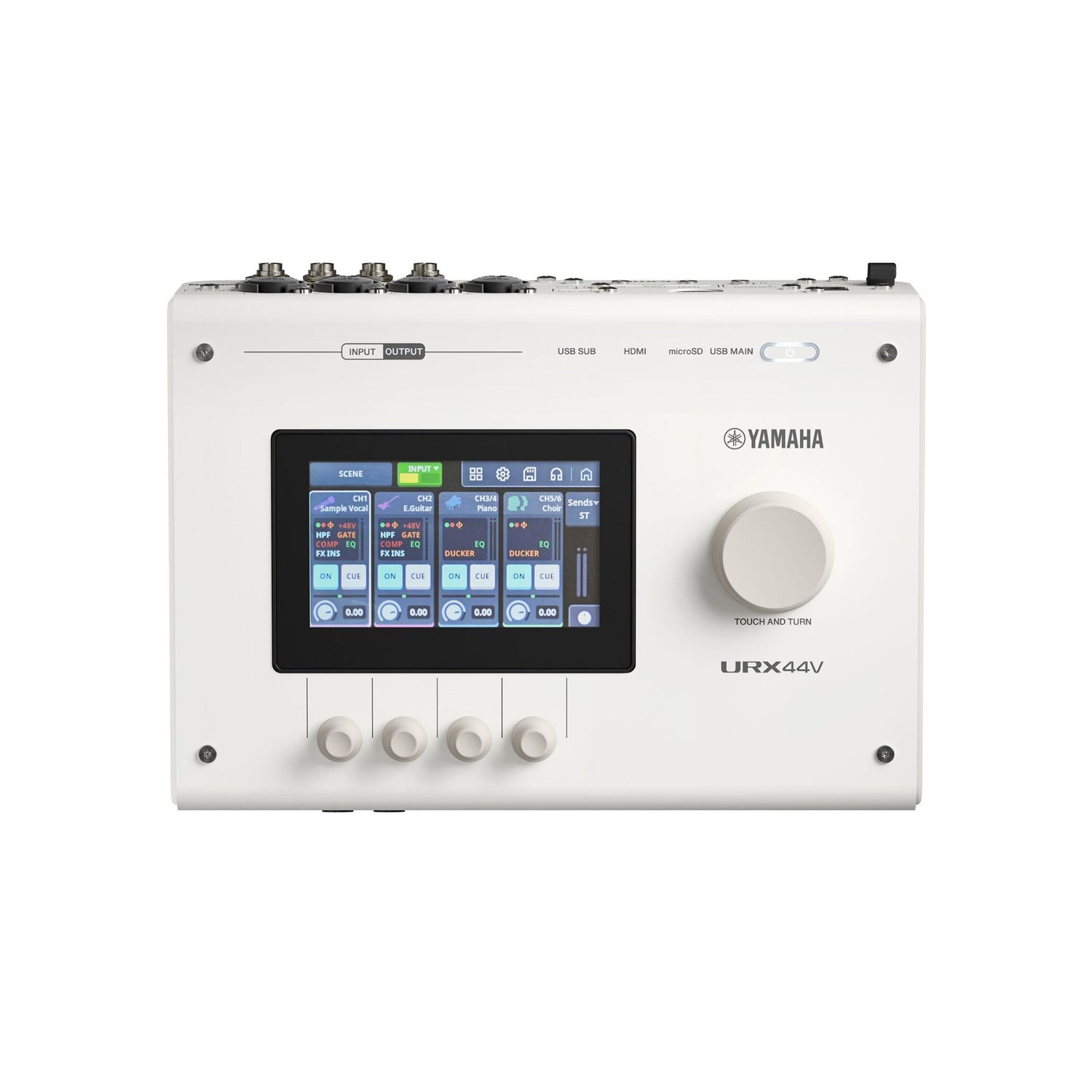

Features Auto Gain, Clip Safe, Ducker, Multi-Band Compressor, and Delay (lip-sync adjustment), plus a 4.3-inch touch LCD, TOUCH & TURN control, customizable knobs, Scene Recall, and Simple Mode for fast, precise, and seamless operation.
Connect and Collaborate

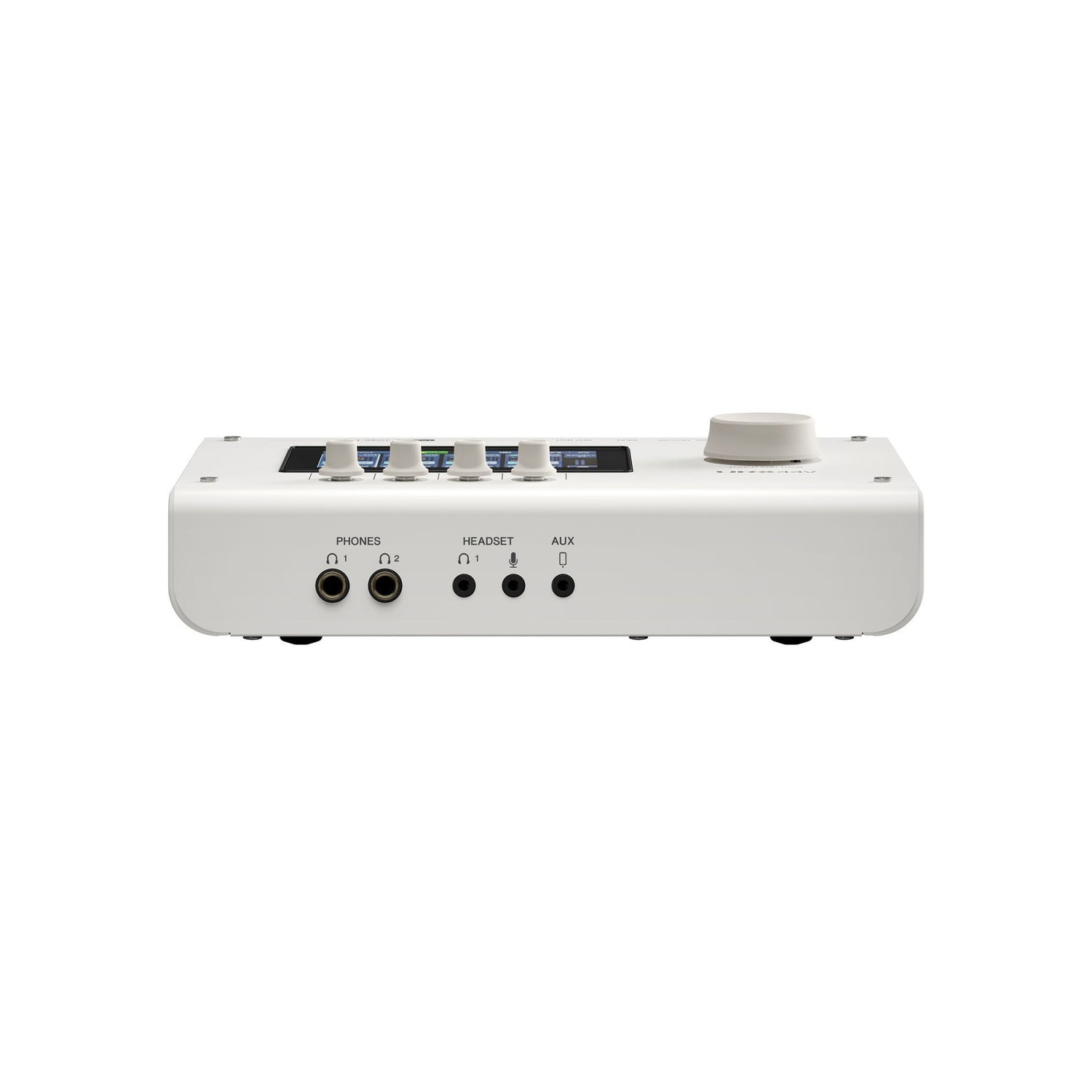

Four combo inputs, stereo mini AUX and headset mic input, four TRS line outputs, dual headphone outputs, and flexible routing with multi-stream USB support; dual USB ports provide 18-track recording/playback (MAIN) and 2-track (SUB) for versatile production setups.
All-in-One Audio/Video Production
Integrated HDMI interface supports 4K/60fps and 1080p/240fps capture and pass-through, plus standalone microSD recording (up to 16 tracks / 2-track playback), bundled Steinberg software, MixKey mixer, and seamless integration with OBS Studio and Elgato Stream Deck for streaming, music production, and content creation workflows.
- MIC/LINE/Hi-Z: 115 dB
- MAIN OUTPUT: 125 dB
- MIC/LINE/Hi-Z: 0.0008% (1 kHz, 20 kHz LPF)
- MAIN OUTPUT: 0.00036% (1 kHz, 20 kHz LPF)
- 4K: Up to 60 fps (SDR)
- 1440p: Up to 144 fps (SDR)
- 1080p: Up to 240 fps (SDR), HDR supported at 60 fps
General

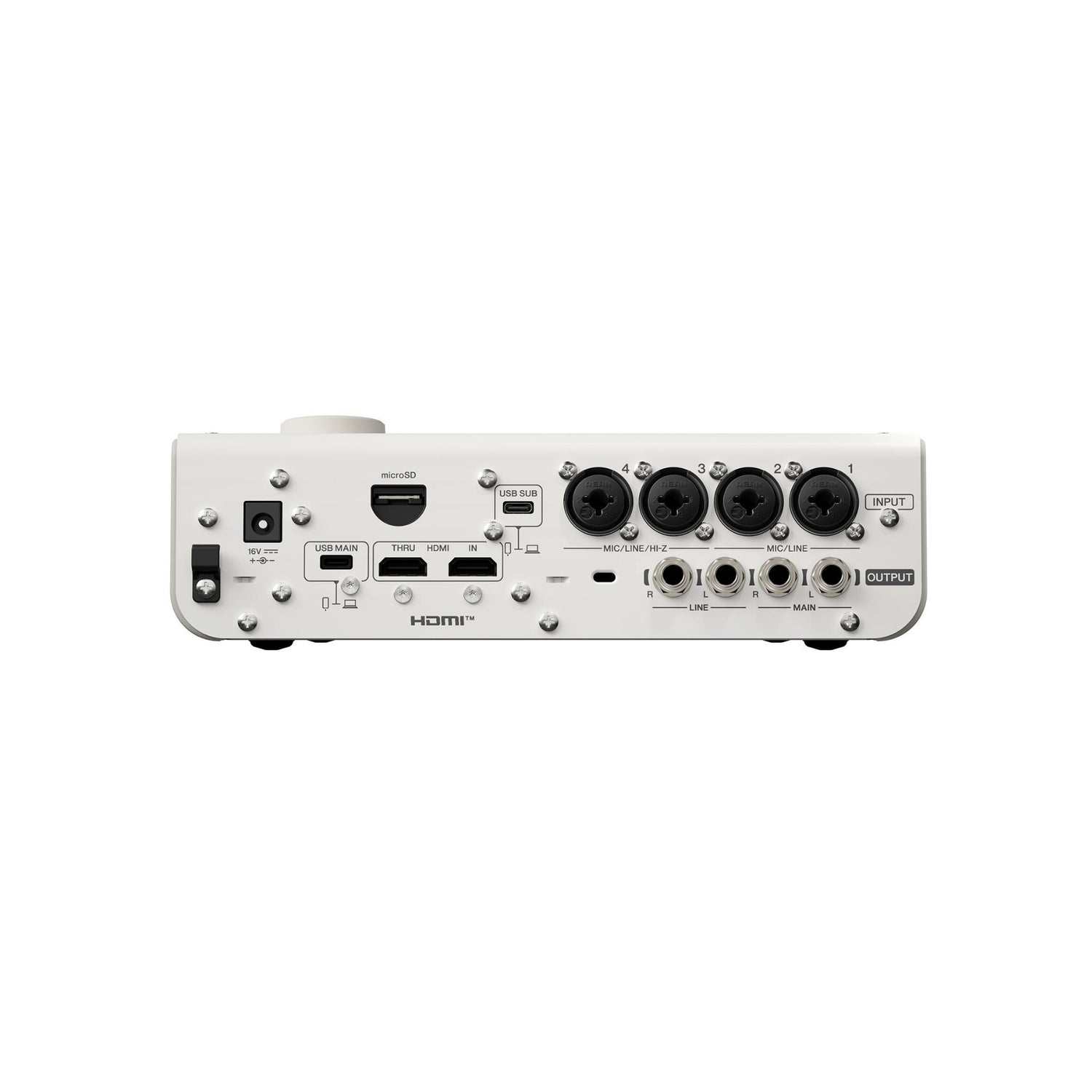

| I/O Connectors | |
| Analog Input | 4 Combo (1 Mic/Line/3.5 mm headset mic, 1 Mic/Line, 2 Mic/Line/Hi-Z) + 1 AUX (3.5 mm Phone) |
| Analog Output | 4 TRS |
| USB TO HOST | 2 × USB Type-C (MAIN: 32-bit / SUB: 16-bit) |
| Phones | 2 TRS + 1 mini headset (100 mW + 100 mW @ 40Ω) (TRS 1 and 3.5 mm cannot be used simultaneously) |
| DC | 1 (Barrel type, DC power IN) |
| microSD Card Slot | 1 |
| HDMI | 1 IN / 1 THRU (Audio/Video input, capture, pass-through) |
| MIDI | None |
User Interface
| 4.3-inch touch screen | |
| 5 × rotary encoders (4 screen knobs + 1 TOUCH AND TURN) |
Recording & Playback
| USB (MAIN) | 18-track recording / 18-track playback |
| USB (SUB) | 2-track recording / 2-track playback |
| microSD Card | Up to 16-track recording / 2-track playback |
Audio Performance
| Sampling Frequency Rate | 44.1 kHz – 192 kHz |
| Frequency Response | +0.0 / −0.2 dB (20 Hz – 20 kHz) |
| Dynamic Range | |
| Total Harmonic Distortion | |
| Equivalent Input Noise | -128 dBu (A-Weighted) |
| Gain Range | 78 dB |
Power
| Power Requirements | DC 16V / 2.4A (PA-300 AC adapter, 100–240V, 50/60 Hz) |
| Power Consumption | 38.4 W (0.1 W off mode) |
| Auto Power Off | 2, 5, 10, 15, 20 minutes or Never |
Physical
| Dimensions (W × H × D) | 245 × 78 × 182 mm (9.6 × 3.1 × 7.2 in) |
| Net Weight | 2.0 kg (4.4 lb) |
Environmental
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +60°C |
Mixing Capacity
| Input Channels | 4 mono + 4 stereo + 2 FX |
| Mix Buses | 2 (stereo) |
| Stereo Buses | 1 |
| FX Buses | 2 |
| Cue Buses | 1 |
On-Board Processors (DSP)
| Gate | |
| Compressor | |
| EQ | |
| Sweet Spot Morphing Channel Strip (Comp & EQ) | |
| Guitar Amp Classics (Amp Simulator) | |
| Pitch Fix (Voice Changer) | |
| Ducker | |
| Multi-Band Compressor | |
| Compander | |
| Delay | |
| REV-X (Reverb) |
Video Capture
| HDMI Input / Capture & USB Output Support | |
