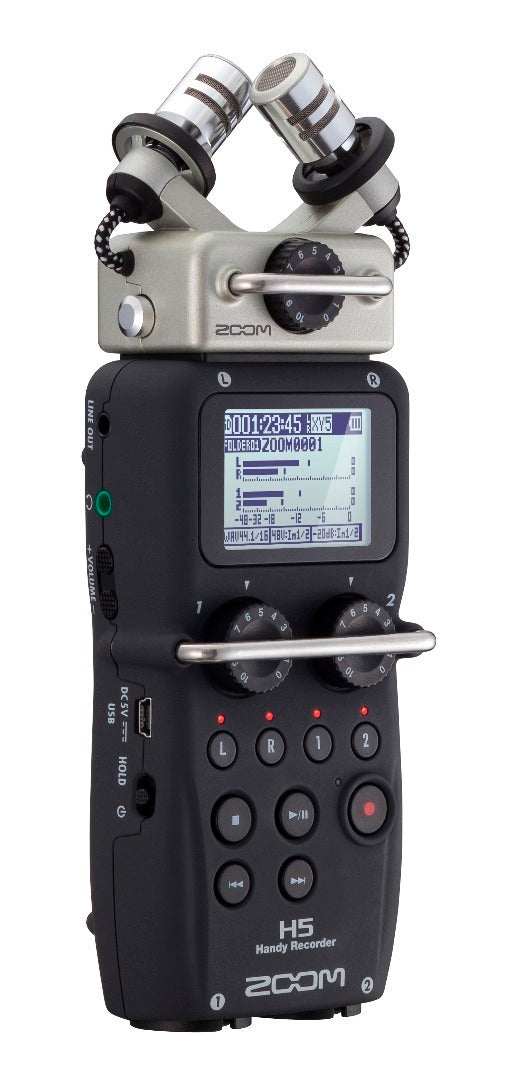

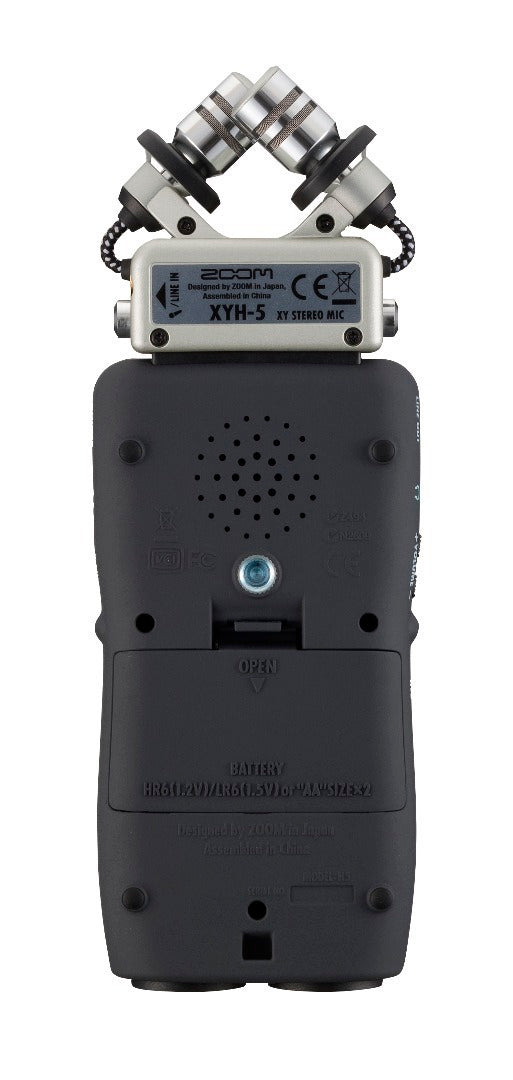

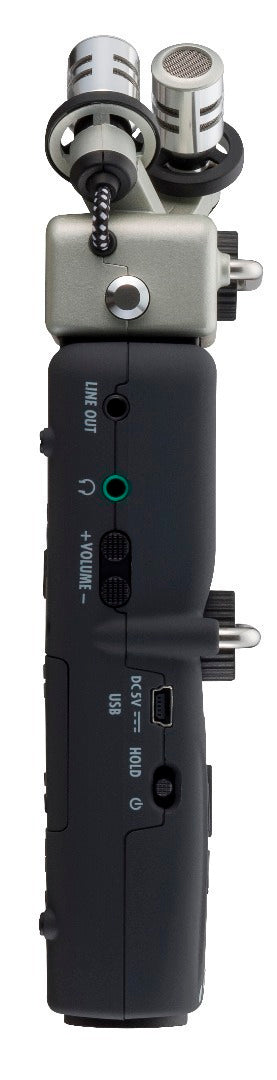

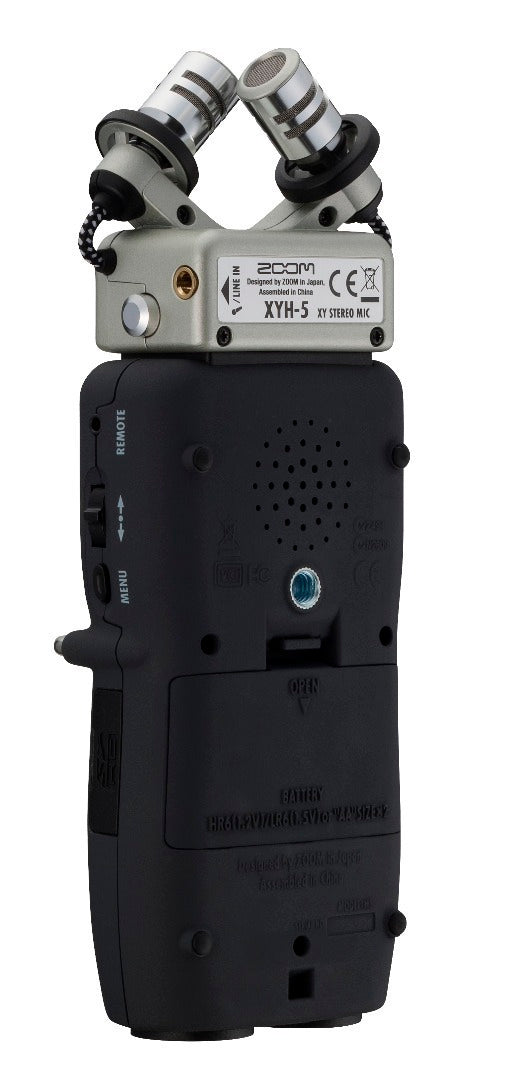

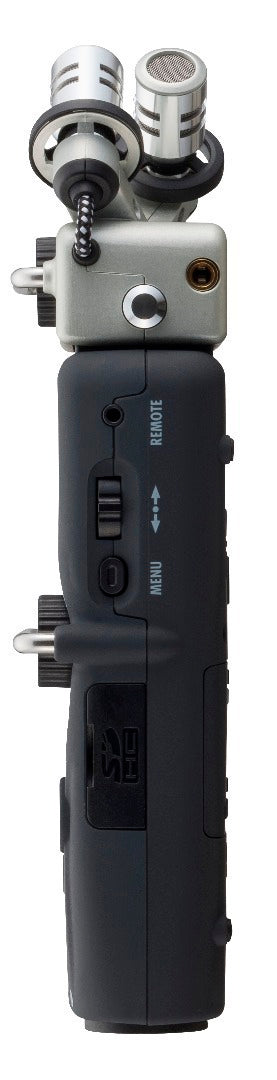

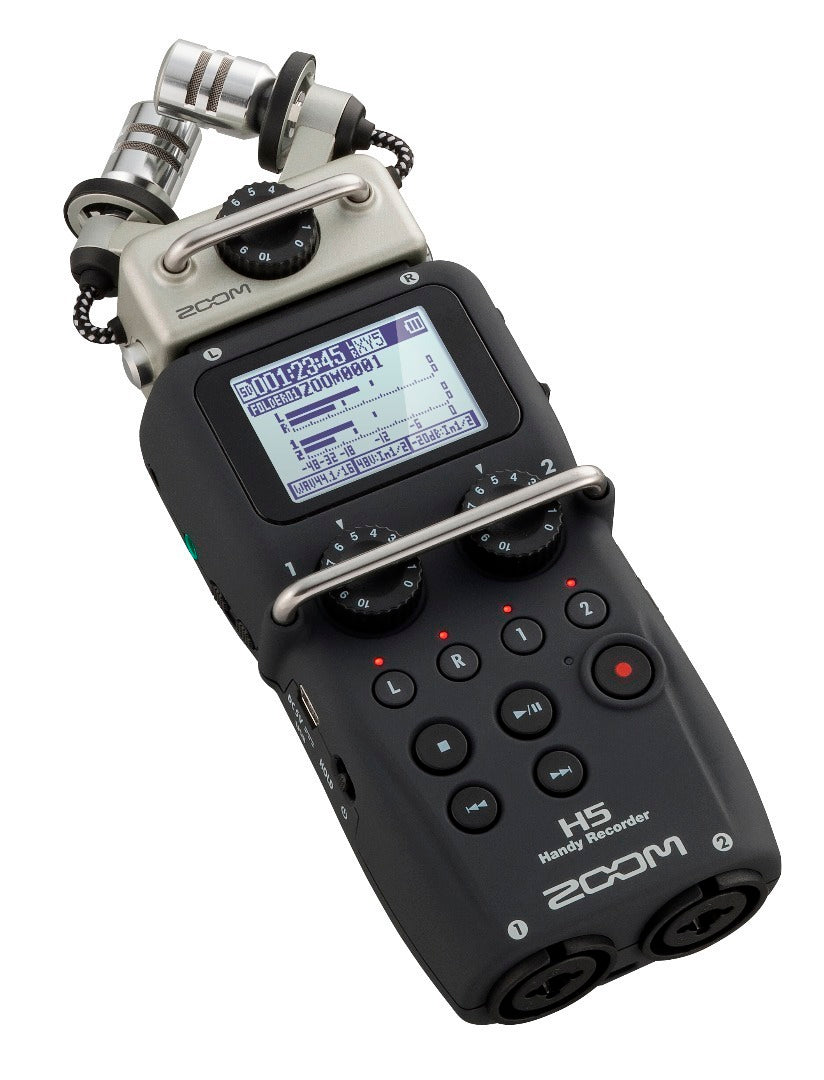

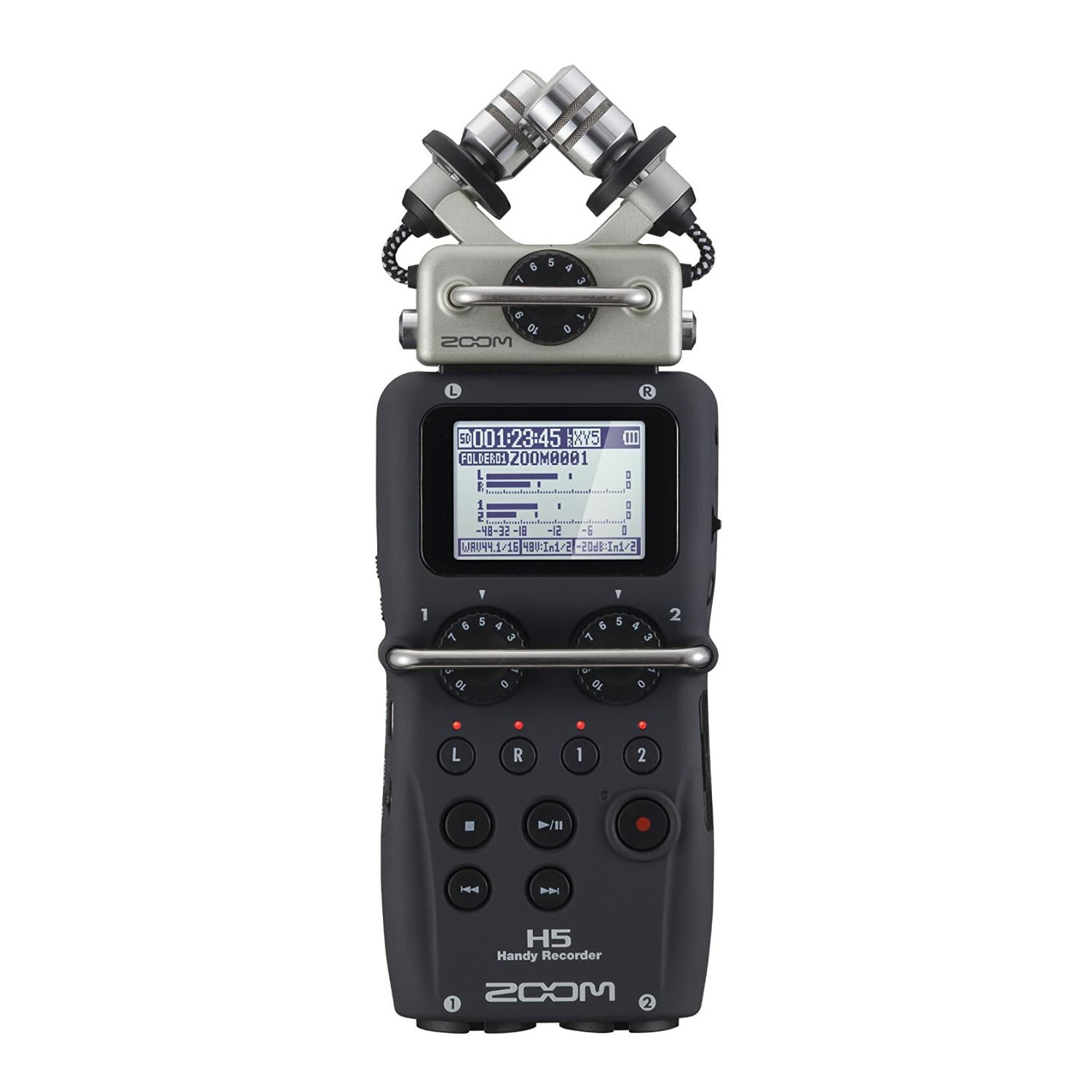

Specially designed to meet the demands of the content creators, the Zoom H5 Handy Recorder captures loud, crisp and clear sound so you can get a perfect take every time. This handheld voice recorder enables four tracks of simultaneous recording and interchangeable input capsules allowing you to choose the best microphone for every recording scenario. Built-in X/Y stereo recording lets you to cover a wide area making the flexible and powerful H5 Handy exactly the device you need to create multitrack recordings. Perfect for recording audio for video as well as podcasting, broadcasting and electronic news gathering, the Zoom H5 Handy Recorder has everything you need for all of your sound capturing needs.
XYH-5 X/Y Microphone Capsule
Equipped with an XYH-5 X/Y Capsule, the Zoom H5 Handy Recorder is able to capture great sound at live music concerts, conducting interviews, videography and broadcasts and podcasts. This specially engineered capsule is able to handle extremely loud sounds with two matched unidirectional condenser microphones set at a 90-degree angle.
Capture Clean Sound
An advanced shockmount employs rugged external mic wires and rubberized material to isolate the microphone capsule unit from the H5 body. This design essentially minimizes vibration and handling noise while handling up to 140 dB--equivalent to the sound of a jet aircraft from less than 200 feet away. With the H5 Handy Recorder, you'll be able to capture sounds louder, closer, and cleaner than you ever could before!
Zoom H5 Handy Recorder
General
| Recording media | SD card -16MB to 2GB , SDHC card: 4GB to 32GB |
| Display | Backlit LCD (128 x 64 pixels) |
Inputs L/R [XYH-5 X/Y mic]
| Mic type | Unidirectional |
| Sensitivity | -45 dB, 1 kHz at 1 Pa |
| Input Gain | -∞ to 52 dB |
| Max sound pressure input | 140 dB SPL |
Mic/Line In
| Connector | 1/8 inch stereo mini jack |
| Input gain | ∞ to 52 dB |
| Input impedance | 2 kOhms or more |
| Plug-in power | 2.5V supported |
| Backup recording | -12dB lower than set L/R input gain |
Inputs 1/2
| Connectors | XLR / TRS combo jacks (XLR: Pin 2 hot / TRS: Tip hot) |
| Input gain (PAD OFF) | -∞ to 55.0 dB |
| Input gain (PAD ON) | -∞ to 35.0 dB |
| Input impedance | 1.8 k Ω or more |
| Max input level | +22 dBu (PAD ON) |
| Phantom power | +12V /+24V /+48V |
| Equivalent Input Noise (EIN) | -120 dBu or less |
Line Out
| Connector | 1/8 inch stereo mini jack |
| Rated output level | -10 dBm |
| Output load impedance | 10kOhms or more |
Phone Out
| Connector | 1/8 inch stereo mini jack |
| Output Level | 20 W +20 W into 32 Ohms load |
| Built-in speaker | 400mw 8 Ohms mono |
Stereo Mode
| WAV (BWF-compliant) | Sampling frequency - 44.1/48/96 kHz, Bit rate - 16/24 (Stereo), Maximum simultaneous recording tracks: 2 |
| MP3 | Sampling frequency - 44.1kHz, Bit rate - 48/56/64/80/96/112/32/160/192/224/256/320kbps |
Multitrack Mode
| WAV (BWF-compliant), Sampling frequency - 44.1/48 kHz, Bit rate - 16/24 (Mono/Stereo), Maximum simultaneous recording tracks - 6 (L/R + INPUT 1/2 + L/R backup) |
USB
| Mass Storage Class operation | Class USB 2.0 High Speed |
| Audio Interface operation | Multitrack mode: Class - USB 2.0 High Speed, Sampling frequency -44.1/48kHz, Bit rate: 16/24 bit, Inputs / Outputs: 4 / 2 |
| Audio Interface operation | Stereo mode - Class - USB 2.0 Full Speed, Sampling frequency - 44.1/48kHz, Bit rate: 16 bit, Inputs / Outputs: 2 / 2, USB bus powered operation possible (iPad operation supported in Stereo mode only) |
Power Requirements
| 2 x AA LR6 batteries or AC adapter - AD-17 (DC5V/1A/USB-type) (optional) or USB bus power |
