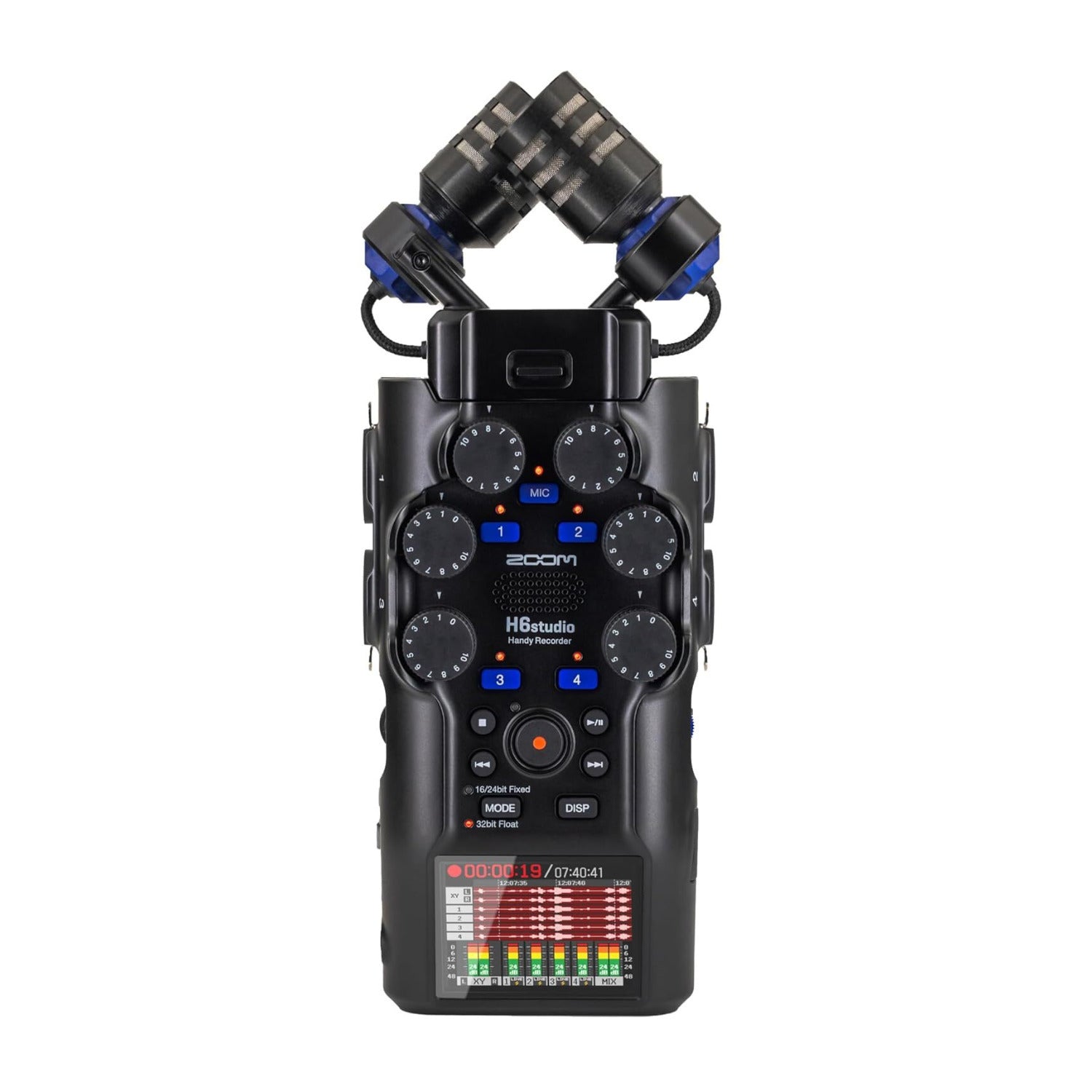

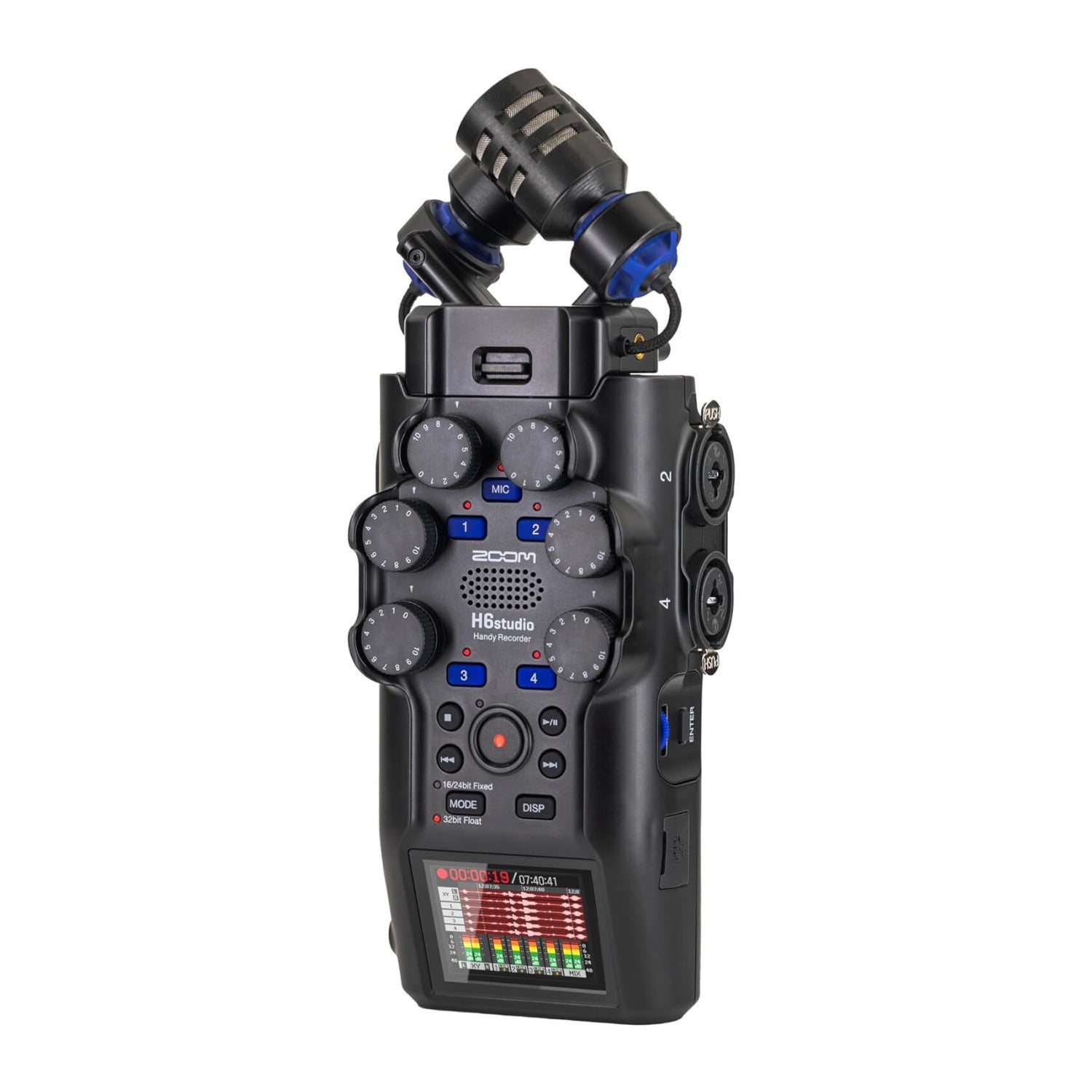

Zoom H6studio 8-Track 32-Bit Float Handy Recorder with XY Stereo Mics
The H6studio puts studio-grade sound in your hands. With 6 audio tracks, large-diaphragm XY mics, 32-bit float recording, and F-Series preamps, you can capture inspiration wherever it strikes.

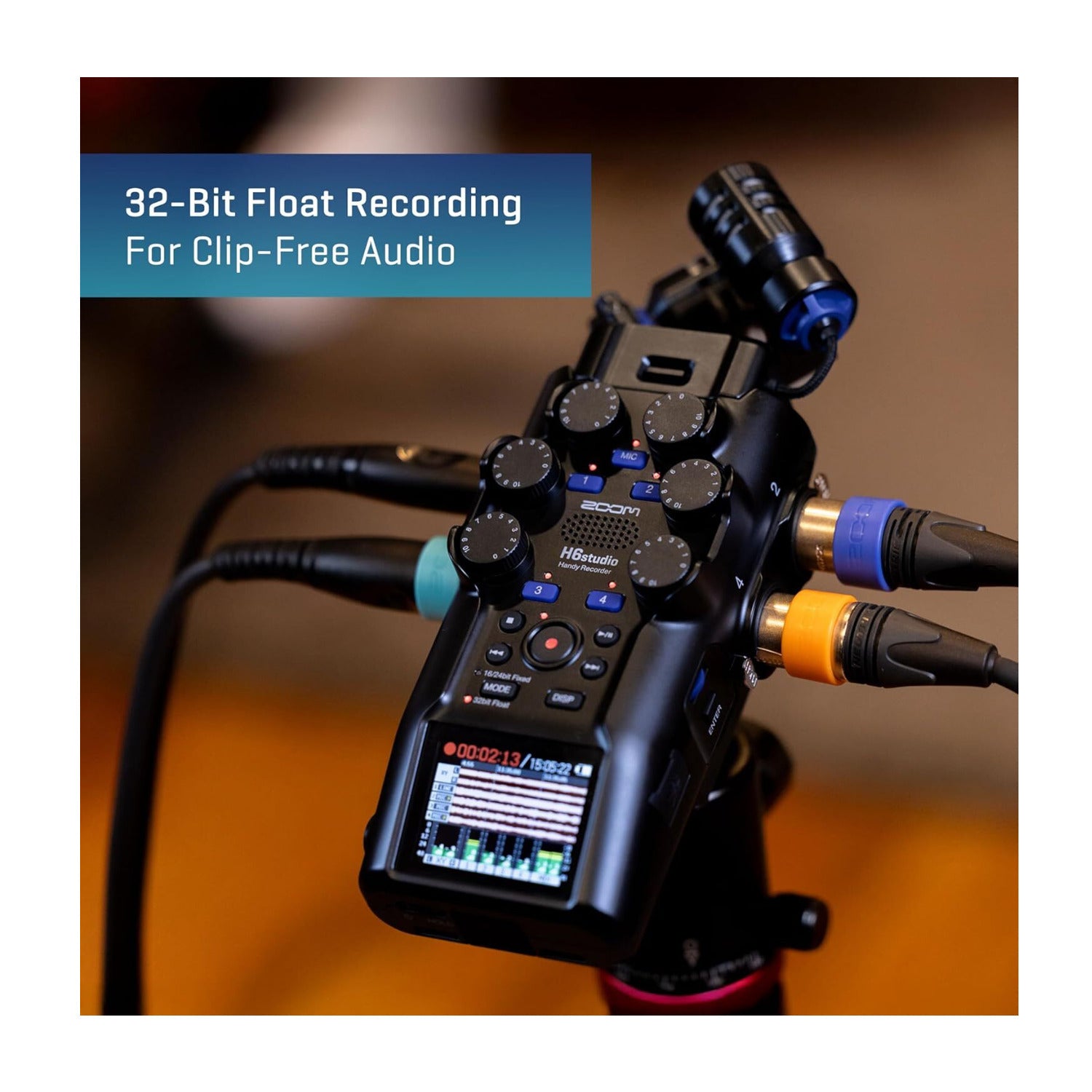

Never Lose a Take Due to Clipping
Whether you're on set or on location, the H6studio's 32-bit float recording keeps you free from clipping and protects you from the unexpected.
Turn Any Space Into a Studio
Capturing up to 8 tracks - 6 individual tracks plus a stereo mix, the H6studio is the perfect portable recording studio.
Podcast Anywhere
Wherever you podcast, the H6studio gives you the inputs, sound quality, and flexibility to bring every voice to life.
From Samples to Soundscapes
Whether you’re a musician recording samples or a sound designer crafting the perfect effect, the H6studio captures textures and tones with pristine audio clarity.

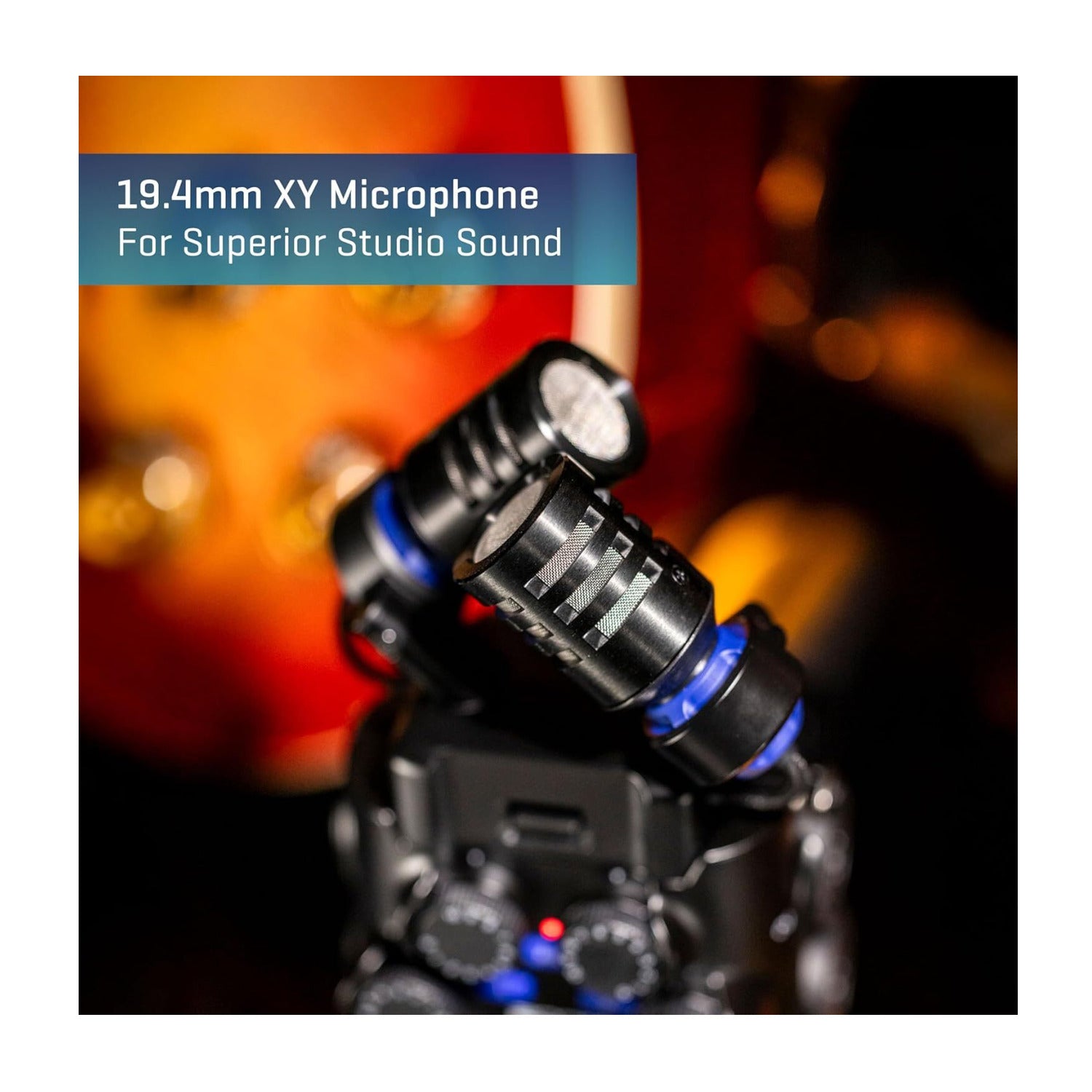

Bigger Mics, Bigger Sound
The H6studio’s 19.4mm XY microphones capture a rich, flat-response with 123 dB of dynamic range and can withstand 140 dB SPL, enough to record a jet engine.
The Power of F-Series Preamps
The H6studio’s preamps deliver ultra-clean audio (-127 dBu EIN). Combined with dual A/D converters and 32-bit float, they provide 132 dB of dynamic range to capture every nuance.
Switch Formats, Not Recorders
Choose between 32-bit float for clip-free recording or use the gain knobs in 16/24-bit for more traditional control. A dedicated format switch lets the H6studio adapt to your workflow quickly.
All the Inputs You Need
The H6studio includes four locking XLR/TRS inputs with +48V phantom power and +4dBu line-level support. It also has a stereo mini jack with plug-in power.
Advanced 2-Inch Color Display
See both the input level peaks and the recording waveforms at the same time. Tap the DISP key to switch between level meter only or waveform view.

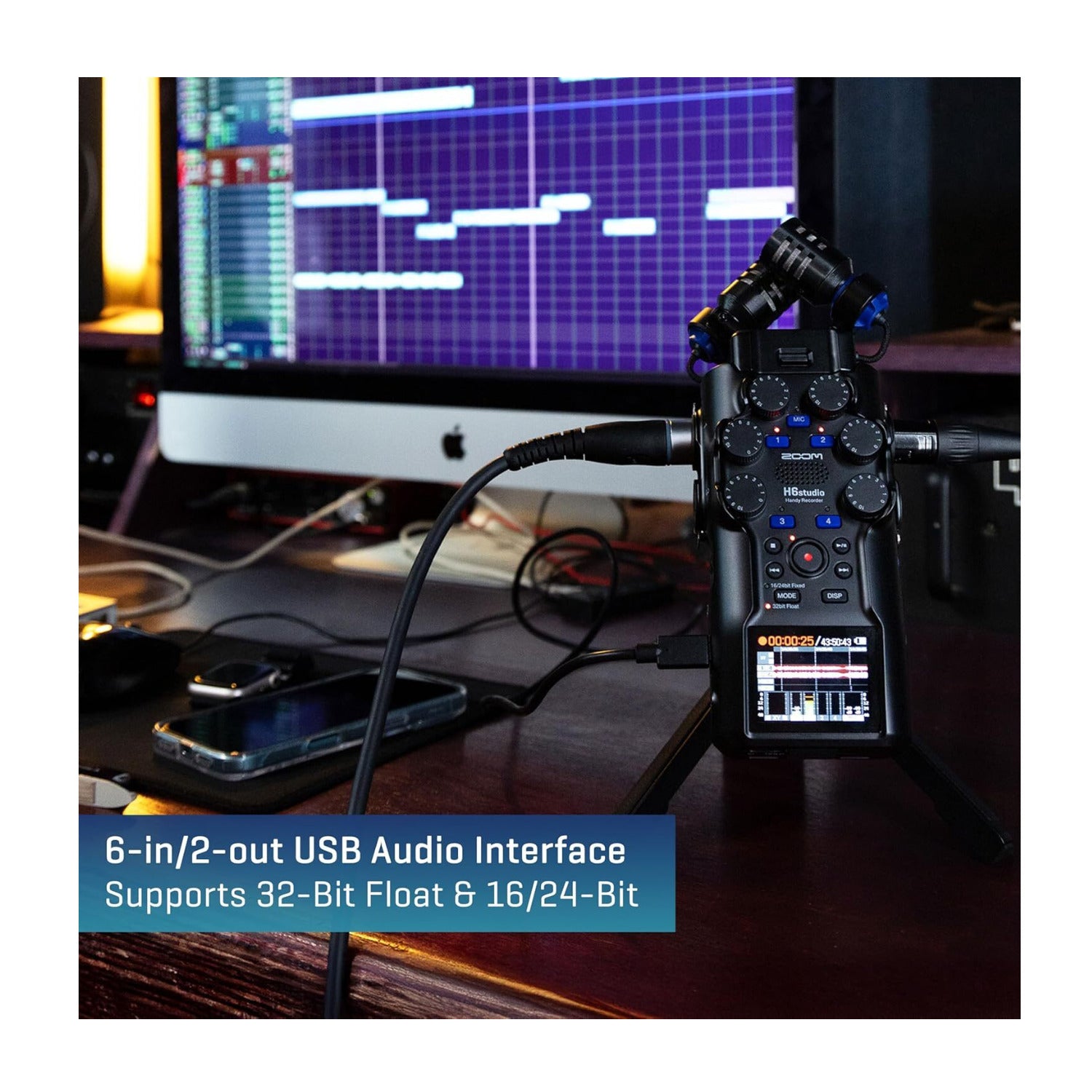

USB Audio Interface
Use the H6studio as a 6-in/2-out USB audio interface supporting 32-bit float and 16/24-bit recording. Stream and simultaneously record a backup to the microSD card.

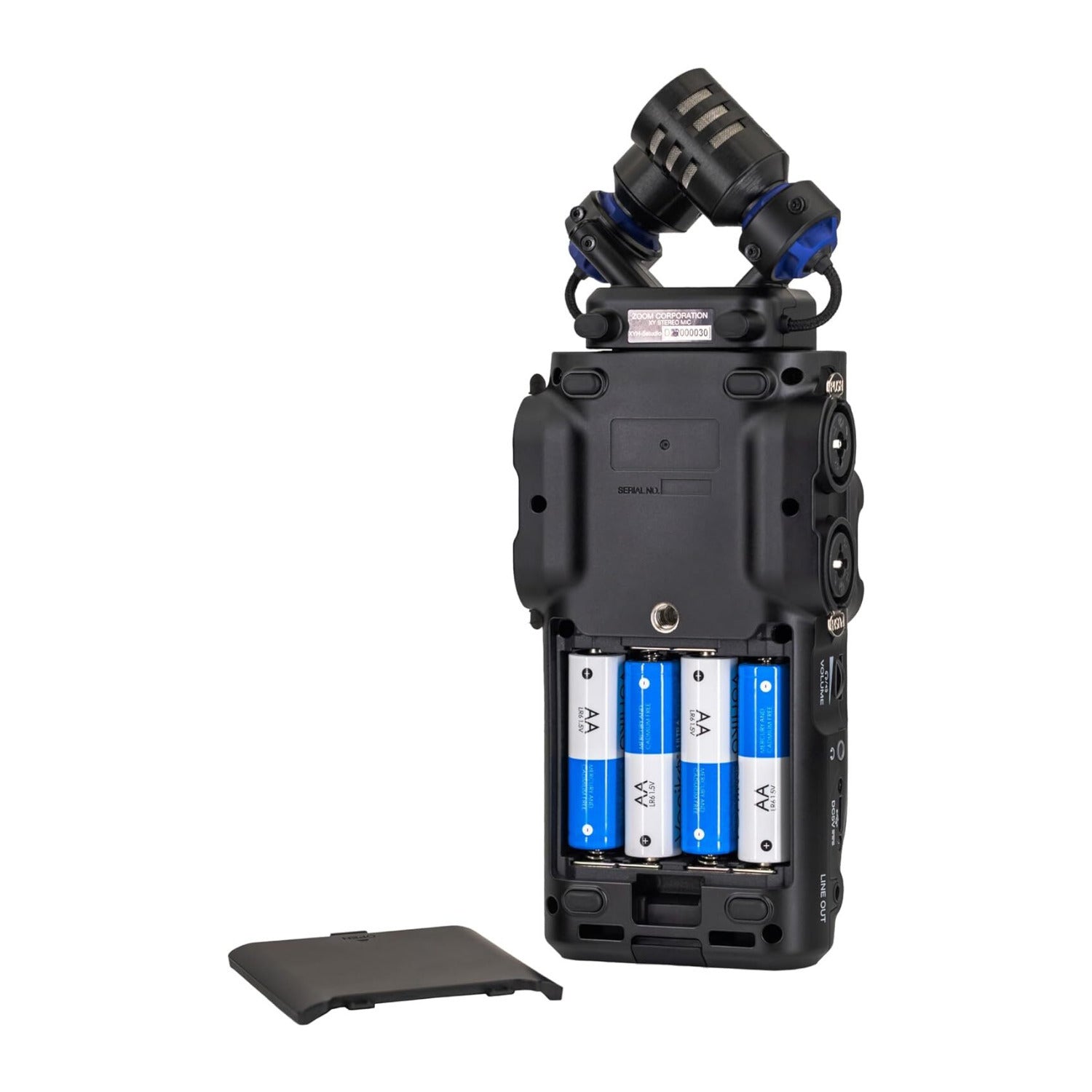

15-Hour Battery
Operates on 4 AA batteries for up to 15 hours of recording. Power through the USB port using a USB mobile battery or AC adapter. (AD-17 sold separately)
- Format: 90° XY stereo
- Pickup Pattern: Unidirectional
- Sensitivity: –41 dB/Pa at 1 kHz
- Max SPL Input: 140 dB SPL
- Connector: 1 stereo mini jack
- Input Gain: −∞ to +60 dB
- Input Impedance: 2 kΩ or more
- Plug-In Power: 2.5 V
- Connectors: 4 × XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
- Input Gain: −∞ to +60 dB
- Input Impedance:
- MIC: 3 kΩ or more
- LINE: 3 kΩ or more
- Maximum Input Level:
- MIC: +4 dBu
- LINE: +24 dBu
- Phantom Power: +48 V
- Equivalent Input Noise: –127 dBu or less (IHF-A) at 150 Ω input
- Connector: 1 stereo mini jack
- Maximum Output Level: +1 dBu
- Output Impedance: 110 Ω or less
- Connector: 1 stereo mini jack
- Maximum Output Level: 20 mW + 20 mW (32 Ω load)
- Output Impedance: 10 Ω or less
- Type: 20 mm × 30 mm elliptical dynamic
- Effective Maximum Output: 250 mW
- WAV (44.1/48/96/192 kHz, 16-bit/24-bit/32-bit float, mono/stereo)
- BWF and iXML supported
- microSDHC cards
- microSDXC cards
- 6-in / 2-out (Multi)
- 2-in / 2-out (Stereo)
- 44.1/48/96 kHz (audio interface only)
- 44.1/48 kHz (interface + onboard recording)
- Alkaline: ~15 hours
- NiMH (1900 mAh): ~12 hours
- Lithium: ~26 hours
- Alkaline: ~4.5 hours
- NiMH (1900 mAh): ~5 hours
- Lithium: ~11 hours
- Alkaline: ~2 hours
- NiMH (1900 mAh): ~3 hours
- Lithium: ~6.5 hours
Input & Output Channels
| Mic Capsule Inputs | 1 |
| MIC/LINE (Mono) Inputs | 4 |
| Line Out Outputs | 1 |
| Headphone Output | 1 |
| Built-In Speaker (Mono) | 1 |
Inputs
| XY Mic (XYH-5s) | |
| MIC/LINE IN (XYH-5s) | |
| MIC/LINE (Mono) Inputs | |
Outputs
| Line Out | |
| Headphone | |
| Built-In Speaker | |
Recorder
| Max Simultaneous Recording Tracks | 8 |
| Max Simultaneous Playback Tracks | 6 |
| Recording Formats | |
| Recording Media |
Display
| Size | 2.0 inch full-color LCD |
| Resolution | 320 × 240 |
USB
| Connector | USB Type-C (data-transfer-capable cable required) |
| Audio Interface | USB 2.0 High Speed |
| I/O Channels | |
| Sampling Rates | |
| Bit Depths | 24-bit, 32-bit float |
| File Transfer | USB 2.0 High Speed |
Remote
| Wireless Adapter | ZOOM BTA-1 (dedicated) |
Power
| Battery Options | 4 × AA (alkaline, lithium, or NiMH) |
| AC Adapter | ZOOM AD-17 (DC 5 V/1 A) |
| USB Bus Power | Supported |
Estimated Battery Operation Times
| 2-Track Recording (XYH-5s, 48 kHz/32-bit float, no phantom) | |
| 6-Track Recording (48 kHz/32-bit float, no phantom, headphones used) | |
| 6-Track Recording (192 kHz/32-bit float, phantom on, headphones + line out + remote) | |
| Battery life varies depending on conditions and usage. |
General
| Power Consumption | 5 W max |
| Dimensions | 86.0 mm (W) × 221.0 mm (D) × 54.6 mm (H) |
| Weight | 477 g (with batteries) |
