Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with E...

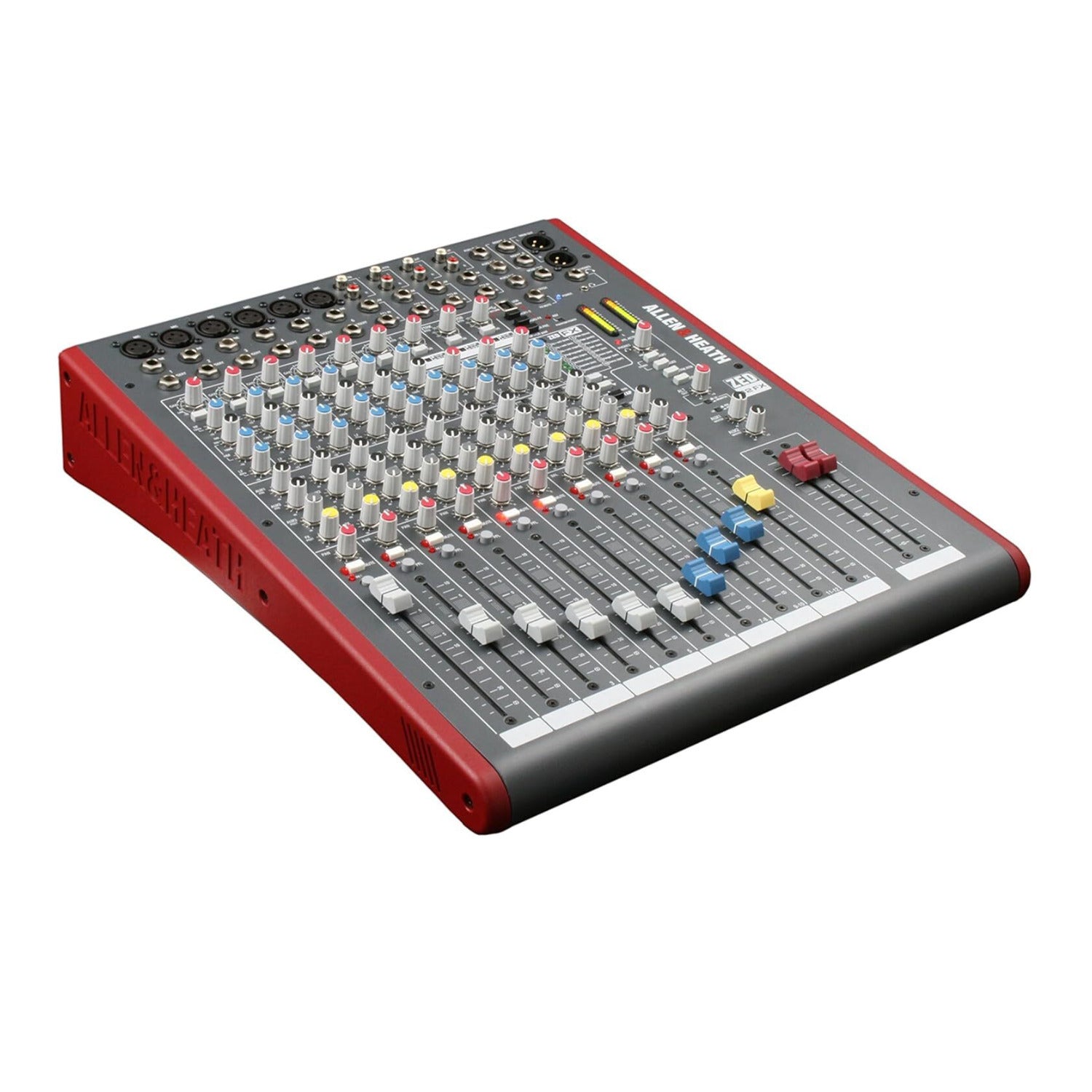

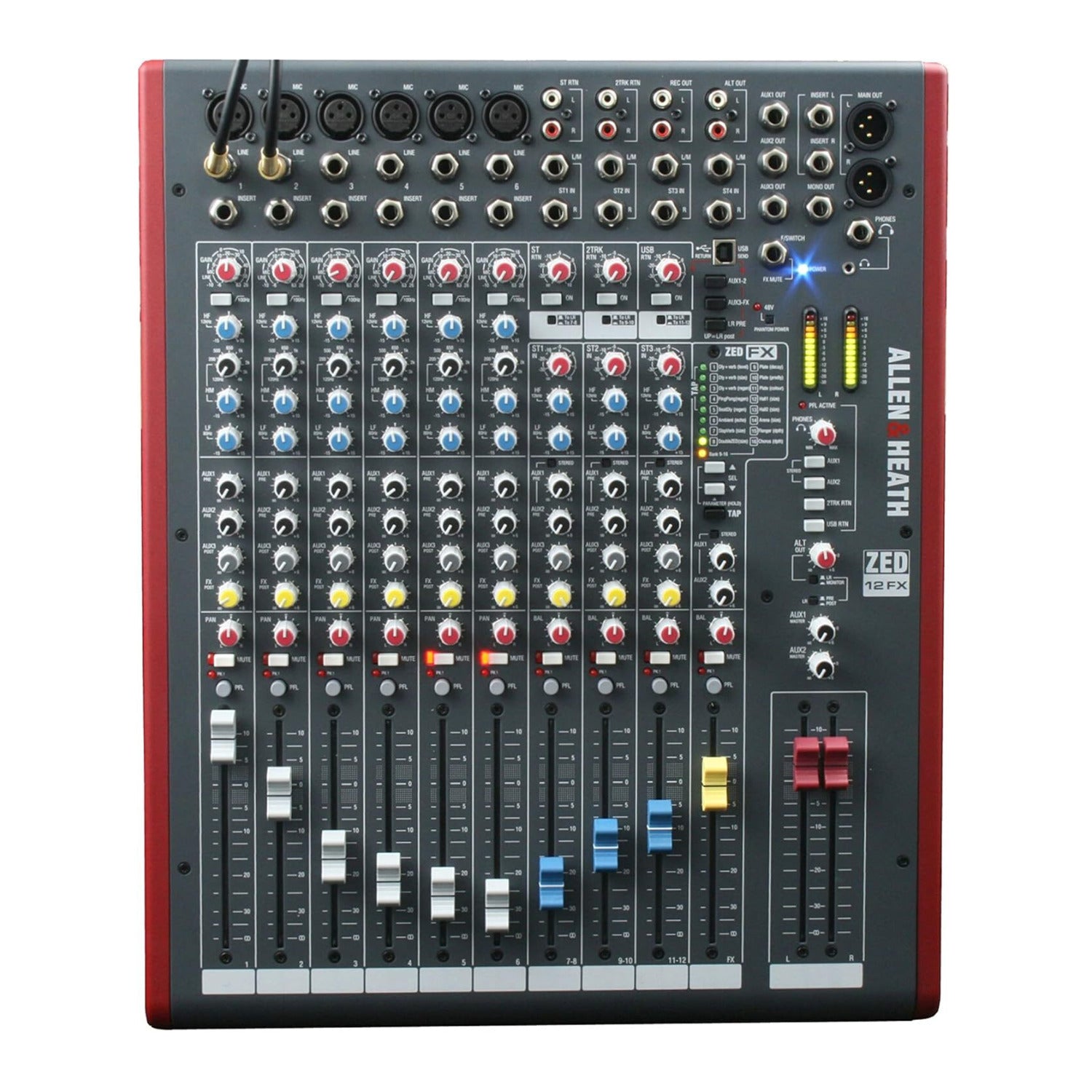

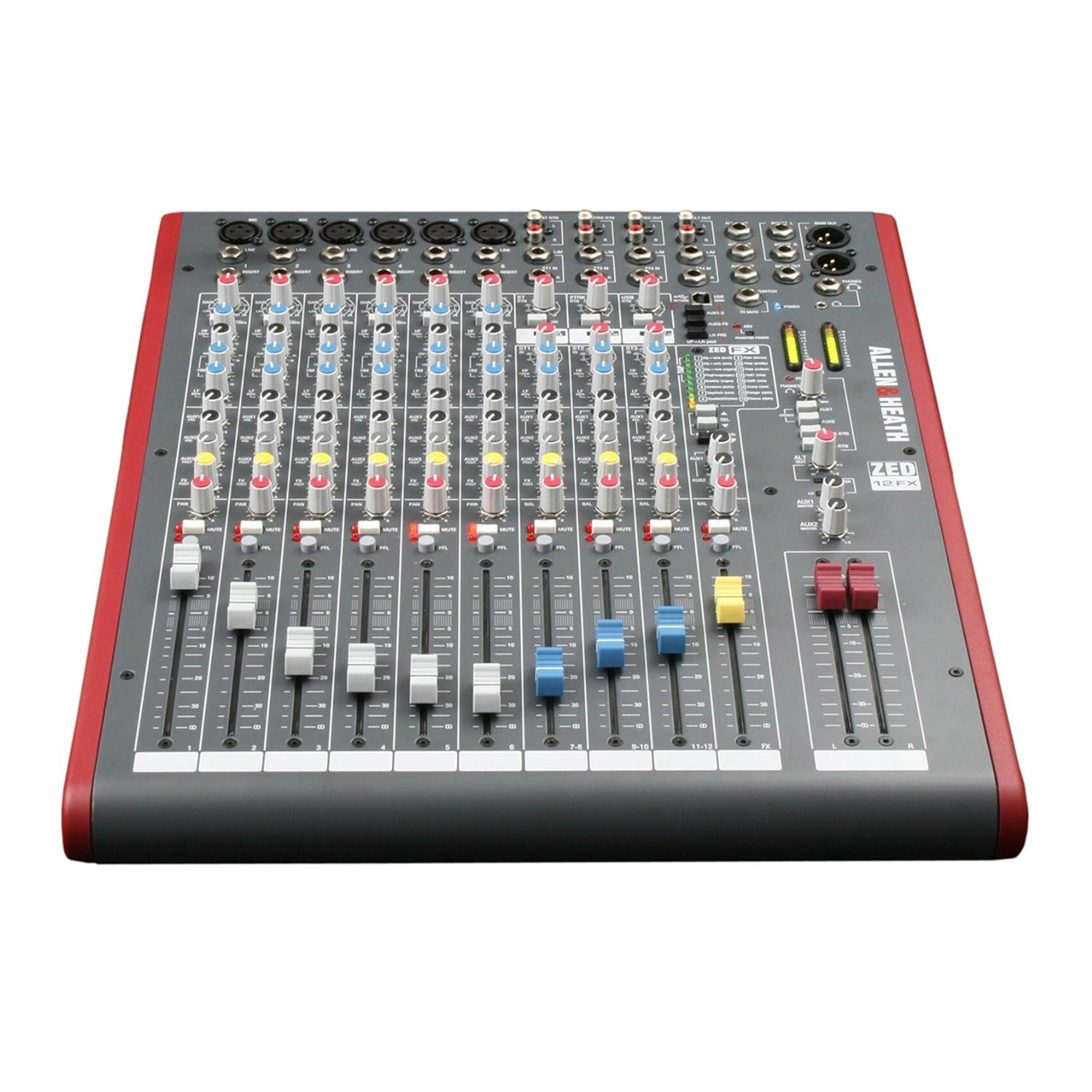

The Allen & Heath ZED-12FX 12-Channel USB Mixer with Effects is designed for live sound, recording, and portable setups. It combines microphone preamps, built-in effects, and USB connectivity in a compact format, making it suitable for small groups and creators who need flexible audio control.
DuoPre Microphone Preamps
Equipped with DuoPre XLR preamps that provide up to 69 dB of gain and 48V phantom power. The dual-stage design delivers consistent signal control and supports both dynamic and condenser microphones, including high-gain models.
MusiQ EQ and High Pass Filter
Each mono channel includes a 100 Hz high-pass filter to remove unwanted low frequencies. The 3-band MusiQ EQ with swept mids allows precise adjustment of vocals and instruments, helping shape a balanced mix.
Built-In Multi-FX Processor
Includes 16 effects such as reverb, delay, and modulation. The FX engine is developed in-house and features tap tempo for timing control, reducing the need for external processors.
USB Audio Interface
Features stereo in/out USB connectivity for recording and playback. It supports class-compliant operation, allowing connection to computers and mobile devices without installing drivers.
Flexible Input and Routing
Provides 6 mic inputs, 6 line/instrument inputs, and stereo channels, along with auxiliary sends and FX return. This allows multiple sources to be connected and managed in one mixer.
Compact and Rack-Mountable Design
Built for portability with an optional rack ear kit for installation in a 19-inch rack or flight case, making it suitable for mobile and fixed setups.
- 1x Stereo Master Output
- 1x Mono Master Output
- 1x Stereo ALT Master Output
- 3x Mono Aux Send Output
- 1x Stereo Tape/Record Output
- 1x Stereo Headphone Output
- Mic: -6 ±69 dB
- 1/4 in Line: -10 dB ±26 dB
- 3-Band EQ (Mono Channels)
- 2-Band EQ (Stereo Channels)
- High: ±15 dB at 12 kHz
- Mid: ±15 dB at 120 Hz to 4 kHz
- Low: ±15 dB at 80 Hz
- Input Channels: 1x High-Pass 100 Hz, 12 dB/Octave
- 3x Delay
- 6x Reverb
- 3x Delay+Reverb
- 1x Stereo Expander
- 1x Chorus
- 1x Flanger
- AD/DA Conversion: 32 / 44.1 / 48 kHz
- DSP: 48 kHz
- Mic Input to Main Output: 20 Hz to 30 kHz +0.5/-1 dB (30 dB Gain)
- Line Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB (Unity Gain)
- Stereo Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB
- XLR Input: +17 dBu (Mono)
- 1/4 in Line Input: +30 dBu (Mono)
- 1/4 in / RCA Input: +10 dB (Stereo)
- Main Output: -88 dBu (Master Level at Unity, Channel Levels at -∞, 22 Hz to 22 kHz)
- Line Input to Main Output: 0.005% at Unity Gain (1 kHz)
- Mic Input to Main Output: 0.004% at Unity Gain (1 kHz) / 0.014% at +30 dB Gain (1 kHz)
- Stereo Line Input to Main Output: 0.003% at Unity Gain (1 kHz)
- 6x 1/4 in TRS Balanced/Unbalanced Line Input
- 6x 1/4 in TRS Balanced/Unbalanced Line Input (3 Stereo Pairs)
- 1x Stereo RCA Coaxial Return
- 6x 1/4 in TRS Channel Insert
- 2x 1/4 in TRS Main Insert
- 6x XLR 3-Pin Balanced Mic Input
- 1x 1/4 in TRS Headphone Output
- 1x 1/8 in / 3.5 mm TRS Headphone Output
- 1x Stereo RCA Tape Output
- 1x Stereo RCA Alt Output
- 2x 1/4 in Aux Send (Pre-Fader)
- 1x 1/4 in Aux Output (Post-Fader)
- 1x 1/4 in FX Send (Post-Fader)
- 2x XLR 3-Pin Balanced Main Output
- 1x 1/4 in Main/Mono-Summed Output (Post-Fader)
Mixer
| Max I/O Capacity | 12x Input / 6x Output |
| Number of Analog Input Channels | 12 |
| Number of Mic Preamps | 6 |
| Analog Output Channels | |
| Mix Routing | Main Mix / Aux Bus/Subgroup / FX Bus |
| Faders & Level Adjustment | 12x 3.9 in / 100 mm Channel Fader |
| Meters | LED |
Signal Processing
| Gain/Trim Range | |
| Dynamic Processing | No |
| EQ | |
| EQ Parameters | |
| Graphic EQ | No |
| Filters | |
| Solo/Mute | Solo, Mute per Input Channel |
| Built-In Effects | |
Digital Audio
| Sample Rates | |
| Bit Depth | 16-Bit |
Performance
| Frequency Response | |
| Max Input Level | |
| Noise Floor | |
| THD+N | |
Connectivity
| Analog Inputs | |
| Analog Outputs | |
| Phantom Power | +48 V, Selectable On/Off |
| Digital I/O | No |
| MIDI I/O | No |
| USB I/O | 1x USB-B 1.1 (I/O) |
| USB I/O Capacity | 2x Input / 2x Output |
| Wireless | No |
Recording
| Max Multitrack Recording | 12 Tracks |
Compatibility
| OS Compatibility | macOS / Windows |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Physical
| Rack Mountable | No |
| Dimensions | 15.2 x 18.3 x 3.9 in / 38.6 x 46.5 x 9.9 cm |
| Weight | 14.3 lb / 6.5 kg |
Packaging Info
| Package Weight | 18.5 lb |
| Box Dimensions (LxWxH) | 25 x 21 x 10 in |
