Allen & Heath ZED60-14FX Live and Studio Mixer with Digital FX ...

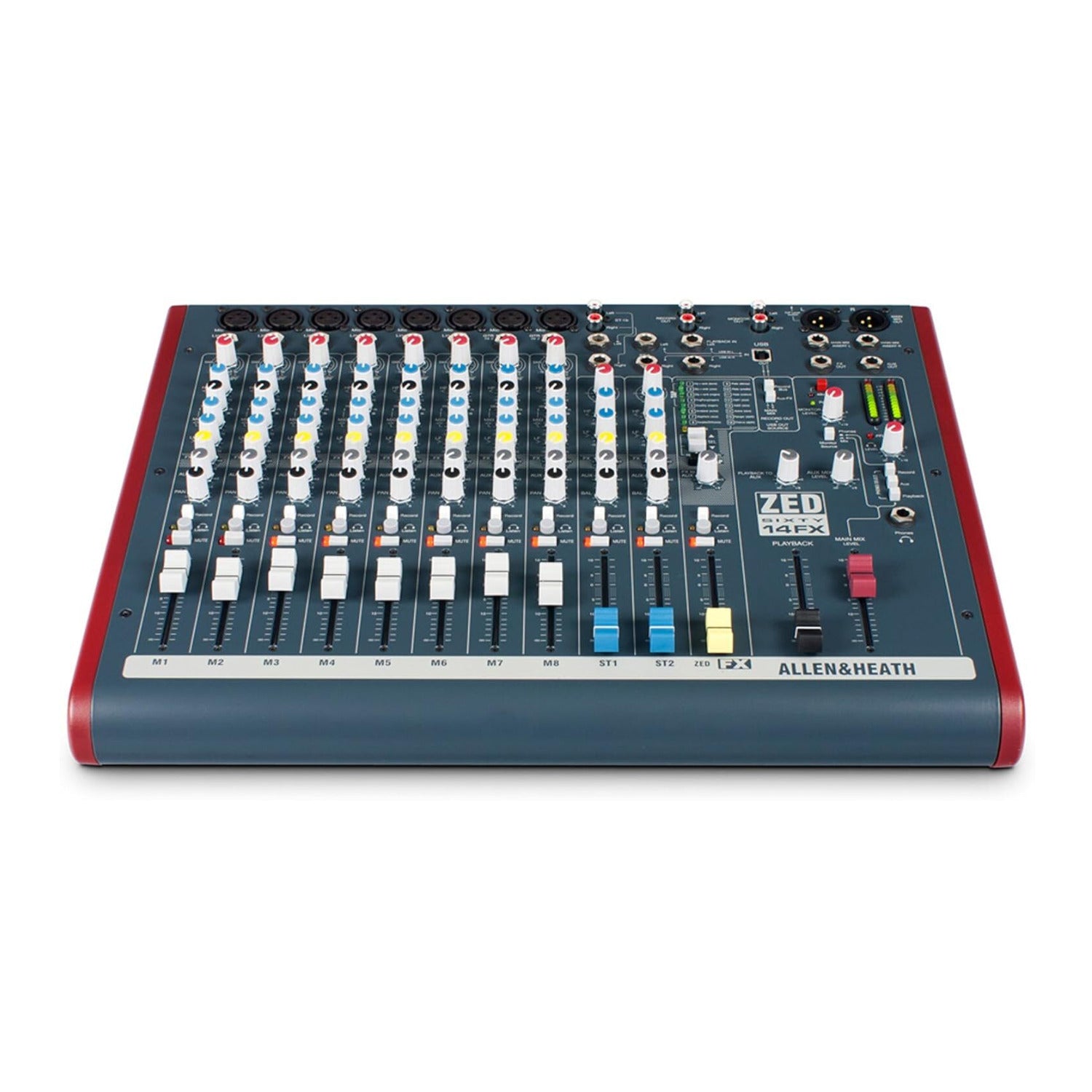

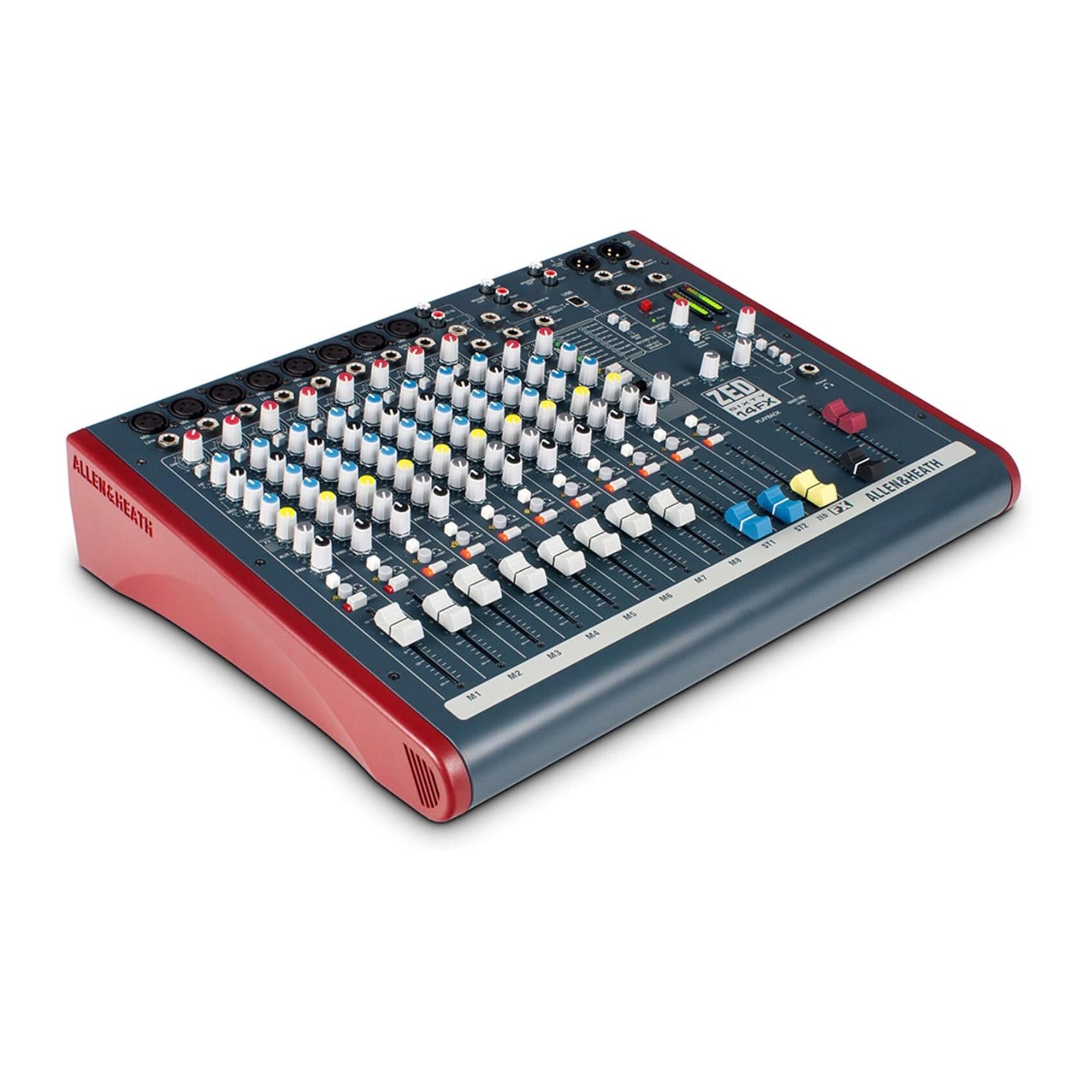

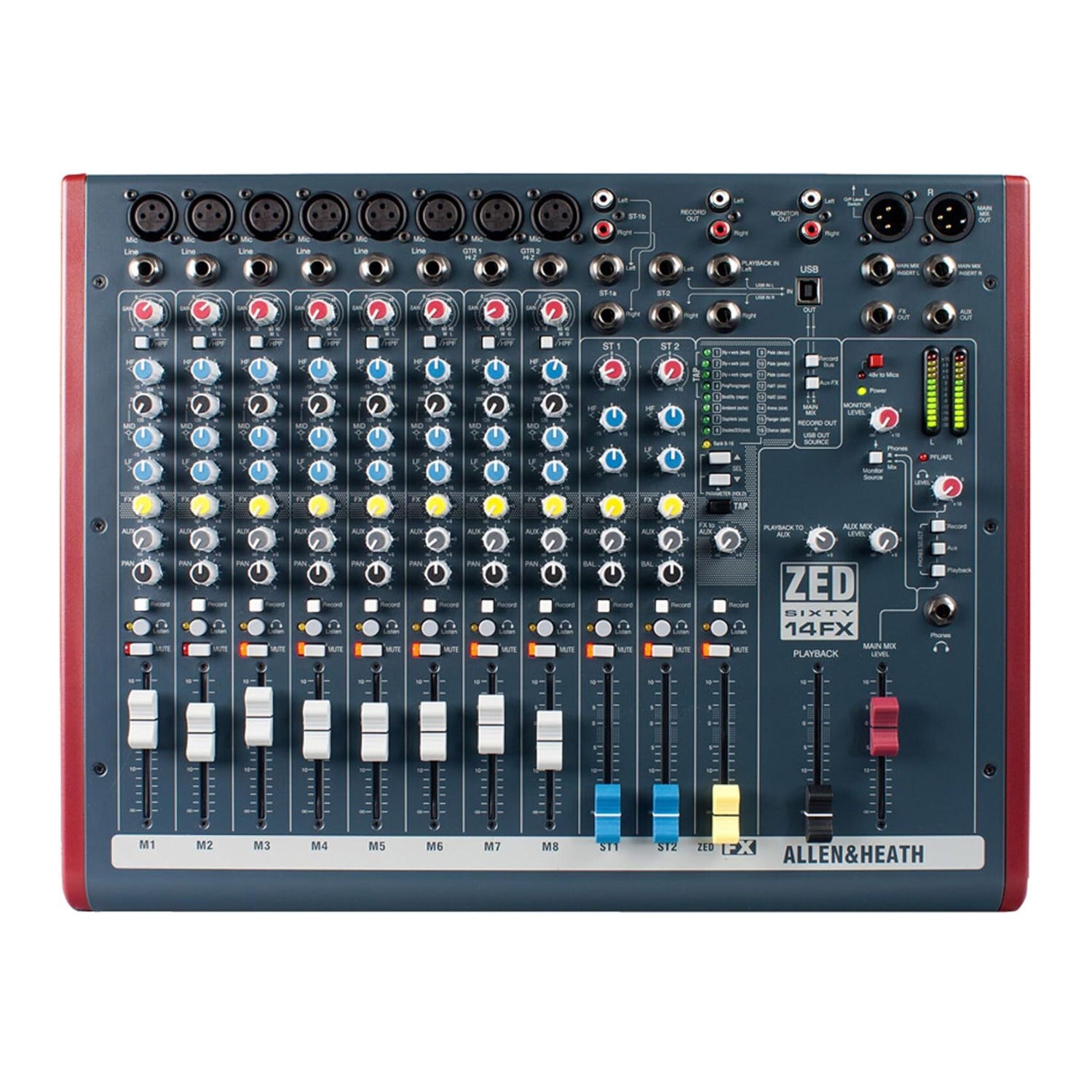

Compact and Reliable Mixer
The ZED60-14FX is a portable mixer designed for both live performance and studio use. Its compact size makes it ideal for small bands, solo performers, and mobile recording setups, providing professional-grade audio without the bulk of a large console.
High-Quality Preamps
Equipped with full, clear, and detailed preamps, the mixer offers 60dB of gain and 48V phantom power. These preamps ensure microphones perform at their best, capturing a natural sound with low noise. Two mono channels include Hi-Z inputs for direct connection of guitars and other high-impedance sources, eliminating the need for DI boxes.
Built-In Digital FX
The integrated multi-FX unit provides 16 effects including reverb, delay, and modulation. Effects can be adjusted and synced with tap tempo, allowing precise control during live performances or recording sessions. These algorithms are developed in-house for consistent sound quality.
Flexible USB Connectivity
The routable stereo USB output allows recording or streaming of the main mix, Aux/FX sends, or a dedicated record bus. Class-compliant operation supports Mac, Windows, and mobile devices without additional drivers, making it easy to capture performances anywhere.
Professional Output Options
Main stereo XLR outputs, headphone outputs, and speaker feed connections provide versatile monitoring and routing options. Optional rack ears allow secure installation in standard 19” racks or flight cases for permanent or mobile setups.
Musical EQ and Signal Routing
Three-band EQ with swept mid frequencies and MusiQ optimization helps shape each channel for a balanced mix. Separate vertical PCB construction ensures durability and reliability, with all controls fixed to the chassis for stable performance over time.
- 1x Stereo Master Output
- 1x Stereo Control Room/Monitor Output
- 1x Mono Aux Send Output
- 1x Mono FX Send Output
- 1x Stereo Tape/Record Output
- 1x Stereo Headphone Output
- 8x Channel Fader
- 1x Master Fader
- Main Meter: 2x 12-Segment LED
- Line/Mic Input: +60 dB
- 1/4 in Hi-Z Input: +26 dB
- Input Channels: 3-Band EQ
- Mono Channels:
- Low: ±15 dB at 80 Hz
- Mid: ±15 dB at 120 Hz to 4 kHz
- High: ±15 dB at 12 kHz
- Stereo Channels:
- Low: ±15 dB at 80 Hz
- High: ±15 dB at 12 kHz
- Input Channels: High-Pass: 100 Hz, 6 dB/Octave
- 3x Delay+Reverb
- 3x Delay
- 7x Reverb
- 1x Flanger
- 1x Chorus
- Mic Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB (30 dB Gain)
- Line Input to Main Output: 10 Hz to 25 kHz +0.5/-1 dB (Unity Gain)
- Stereo Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB
- XLR Input: +11 dBu (Mono)
- 1/4 in Line Input: +31 dBu (Mono)
- 1/4 in / RCA Input: +15 dB (Stereo)
- Mic Input to Main Output: 0.002% at +10 dB Gain (+10 dBu, 1 kHz)
- Line Input to Main Output: 0.01% at +30 dB Gain (1 kHz) / 0.003% at Unity Gain (1 kHz)
- Stereo Line Input to Main Output: 0.002% at Unity Gain (+10 dBu, 1 kHz)
- Hi-Z Input to Main Output: 0.015% (0 dBu)
- 2x 1/4 in TRS Main Insert
- 8x XLR 3-Pin Mic/Line Input
- 6x 1/4 in TRS Line Input
- 2x 1/4 in TRS Unbalanced Hi-Z Input
- 4x 1/4 in TS Input (2 Stereo Pairs)
- 1x Stereo RCA Input
- 2x XLR 3-Pin Main Output
- 1x Stereo RCA Monitor Output
- 1x Stereo RCA Tape Output
- 1x 1/4 in TRS FX Send
- 1x 1/4 in TRS Aux Output
- 1x 1/4 in TRS Headphone Output
Mixer
| Max I/O Capacity | 12x Input / 6x Output |
| Number of Analog Input Channels | 12 (8 Mono / 2 Stereo) |
| Number of Mic Preamps | 8 |
| Analog Output Channels | |
| Mix Routing | Main Mix / Aux Bus/Subgroup / FX Bus |
| Faders & Level Adjustment | |
| Meters | |
Signal Processing
| Gain/Trim Range | |
| Dynamic Processing | No |
| EQ | |
| EQ Parameters | |
| Graphic EQ | No |
| Filters | |
| Solo/Mute | Mute per Input Channel |
| Built-In Effects | |
Digital Audio
| Sample Rates | 32 / 44.1 / 48 kHz |
| Bit Depth | 16-Bit |
Performance
| Frequency Response | |
| Max Input Level | |
| Noise Floor | |
| Main Output | -93 dBu (Master Level at Unity, Channel Levels at -∞, 2 Hz to 22 kHz) |
| THD+N | |
Connectivity
| Analog Inputs | |
| Analog Outputs | |
| Phantom Power | +48 V, Selectable On/Off (Applied to All Inputs) |
| Digital I/O | No |
| MIDI I/O | No |
| USB I/O | 1x USB-B 1.1 (I/O) |
| Wireless | No |
Recording
| Max Multitrack Recording | 12 Tracks |
Compatibility
| OS Compatibility | Windows / macOS |
Physical
| Rack Mountable | No |
| Dimensions | 17.3 x 13.6 x 3.7 in / 440 x 346 x 95 mm |
| Weight | 13.6 lb / 6.2 kg |
Packaging Info
| Package Weight | 14.5 lb |
| Box Dimensions (LxWxH) | 20.3 x 15.8 x 7.3 in |
