Yamaha 22-Channel Digital Mixing Console with Audio Interface with ...

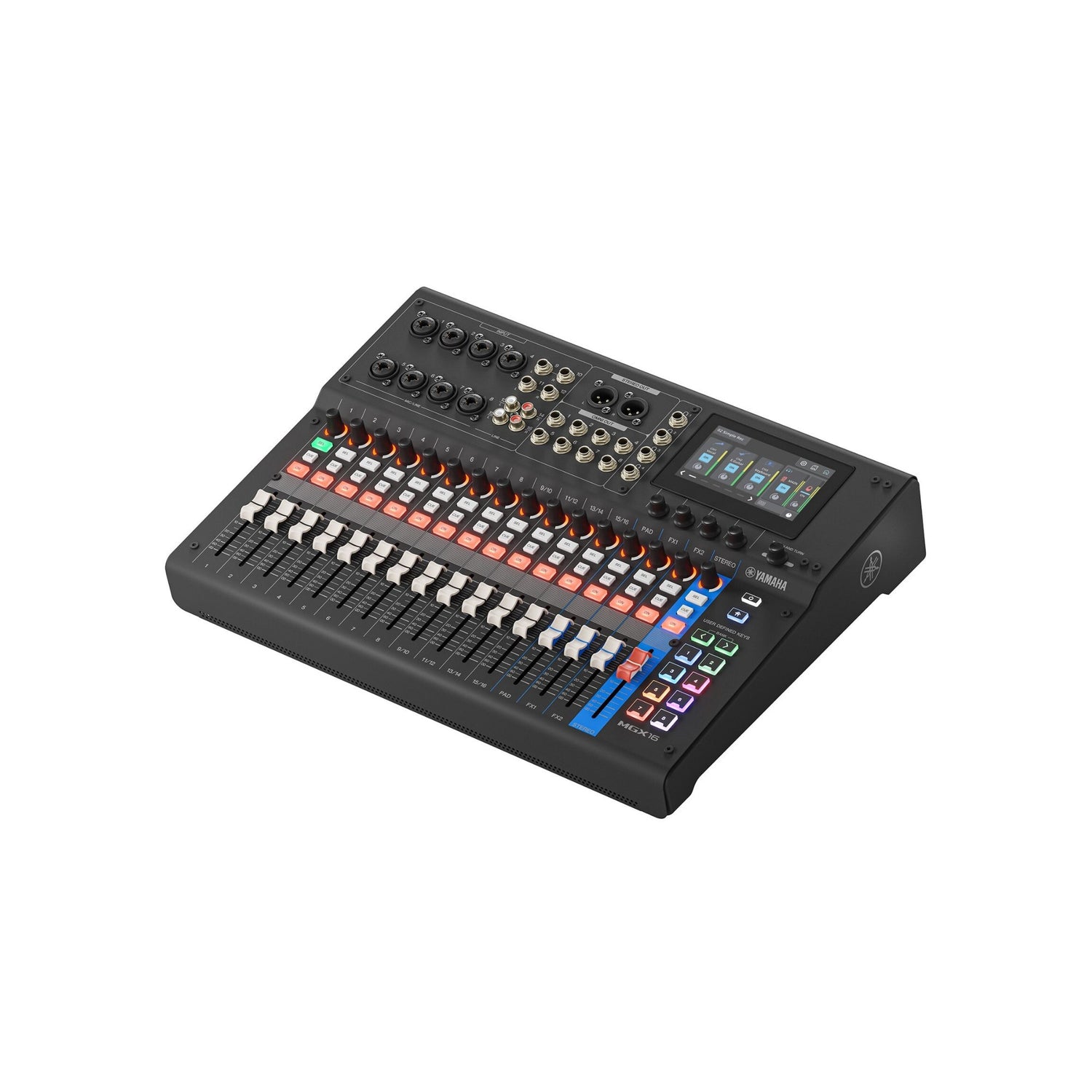

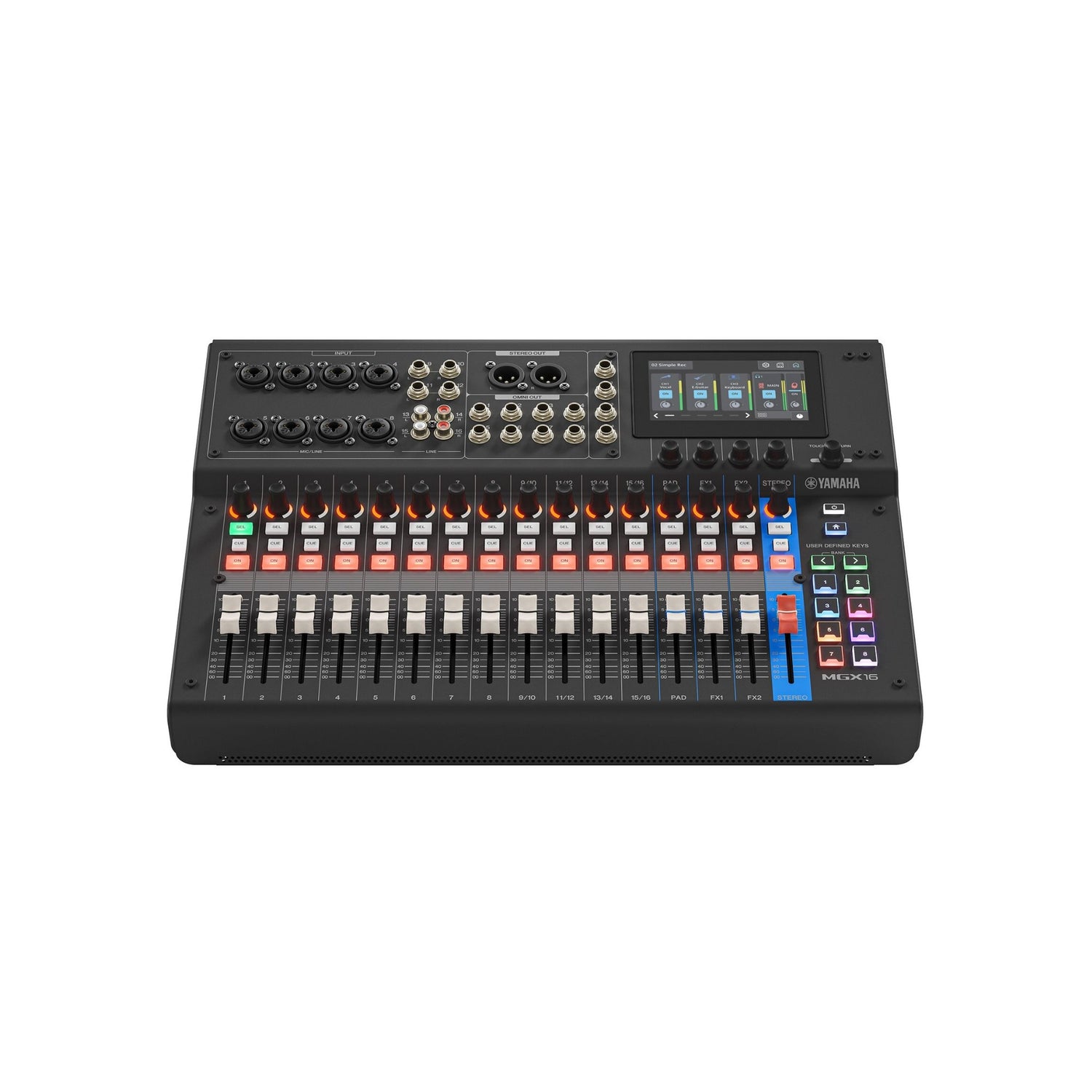

The portable MGX16 Standard compact digital mixing console features versatile capabilities that make it perfect for live sound, streaming, podcasting, and studio recording. The MGX16 offers superb sound quality, intuitive, fast setup and combines all-in-one functionality with Yamaha’s True Sound quality for professional results anywhere.
Premium Connectivity & Inputs
8 MGX mic/line combo inputs, 8 line inputs, 2 XLR outputs, 8 TRS Omni outputs, 4 headphone ports, USB MAIN (22 in/22 out, 32-bit / 96 kHz), USB SUB (2 in/2 out, 16-bit / 48 kHz), Bluetooth 5.0 audio input, and microSD recording/playback (16-track / 2-track, 24-bit / up to 96 kHz) for versatile live, studio, streaming, and recording setups.
Extensive Mixing & Routing
8 mono + 4 stereo channels, 1 dedicated Sound Pad, 2 FX return channels, 8 MIX buses, 2 FX buses, 1 CUE bus, 1 STEREO bus, 15+1 faders, 4 customizable knobs, TOUCH AND TURN knob, and 4.3-inch touchscreen for intuitive, flexible control and complex routing.
Professional True Sound & DSP Processing
High-performance AD/DA converters with 86 dB gain range, ultra-low distortion, 125 dB stereo dynamic range, built-in DSP processor, latency-free monitoring, Auto Gain, Clip Safe, Total FX (Ducker, Multi-Band Compressor, Delay), and effects including Gate, Compressor, EQ, Reverb, Amp Simulator, and Voice Changer.
Customizable Pads & User Keys
Eight assignable pads and four front-right knobs across four banks for triggering sound effects, scene recall, test tones, or user-defined actions to streamline workflow and live performance control.

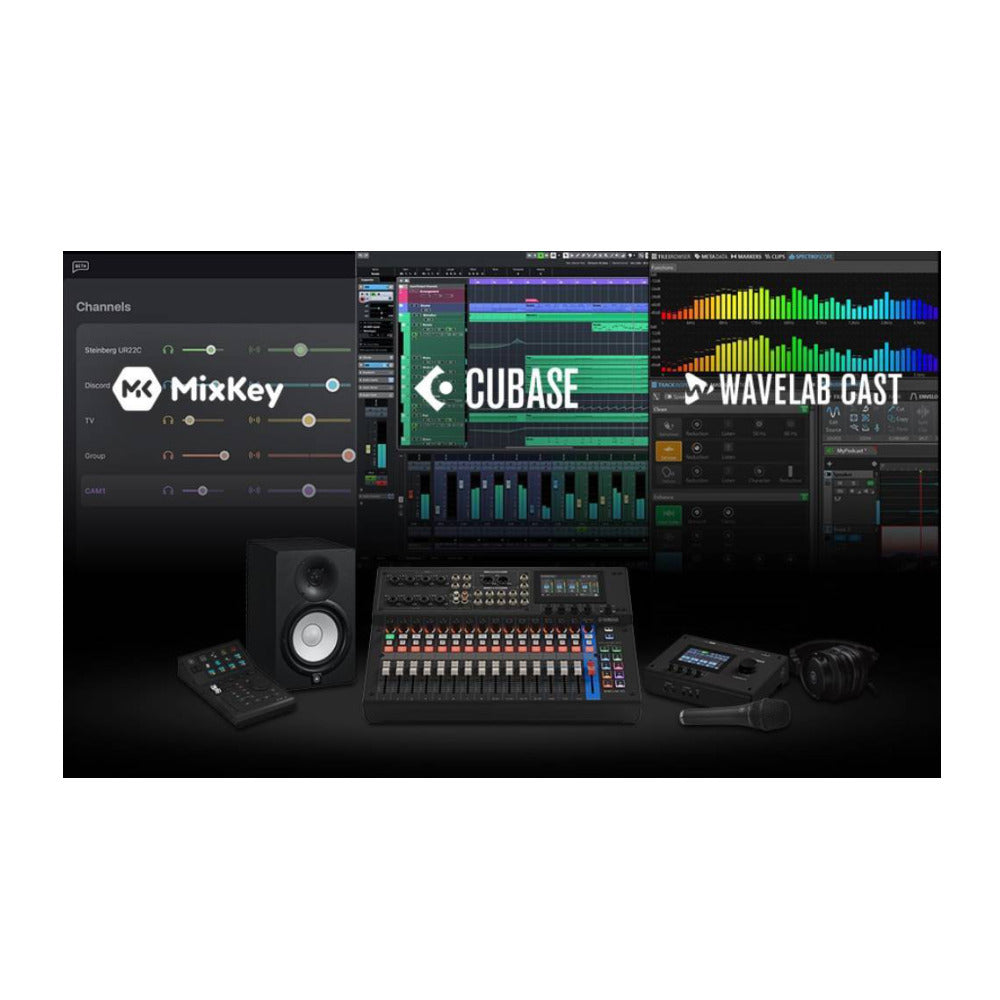

Scene Recall & Workflow Optimization
Scene Recall for instant setup changes, Simple/Standard mode for easy operation, seamless integration with Steinberg MixKey, Elgato Stream Deck, OBS Studio, and planned future support for remote control, maximizing creative workflow and system flexibility.

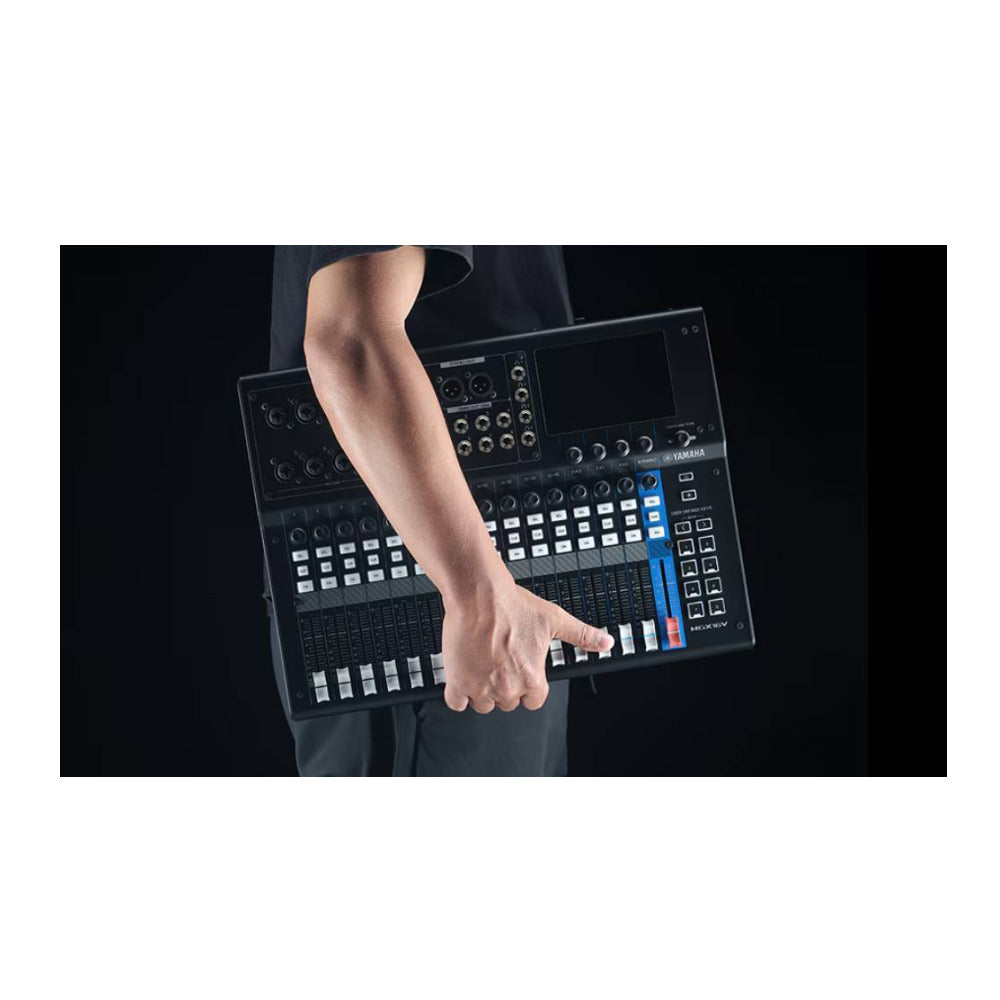

Portable, Rugged & Multifunctional
Lightweight 10.4 lbs with durable construction, ideal for live sound, streaming, podcasting, hybrid events, and studio recording; acts as a full-featured mixer, recording hub, and multifunctional audio workstation, future-proof with expanding Yamaha and third-party integration.

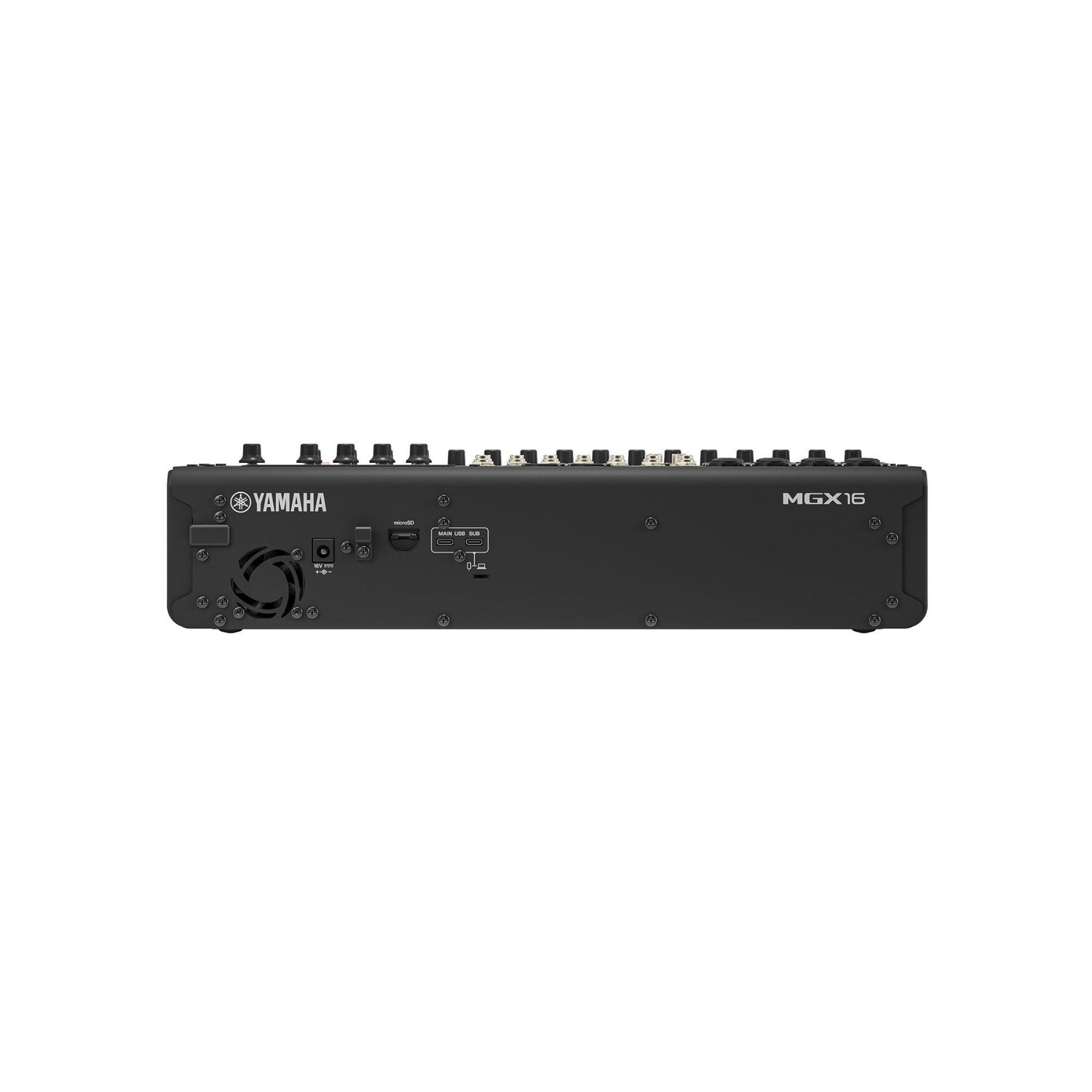

I/O Connectors
| Analog Input | 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line) |
| Analog Output | 2 XLR, 8 TRS |
| USB to Host | 2 (USB Type-C, MAIN: 32-bit / SUB: 16-bit) |
| Phones | 4 TRS (100 mW + 100 mW @ 40 Ω) |
| DC | 1 Barrel type (DC IN) |
| microSD Card Slot | 1 (16-track recording / 2-track playback, 24-bit / up to 96 kHz) |
| Bluetooth | 1 audio input (Bluetooth 5.0, A2DP) |

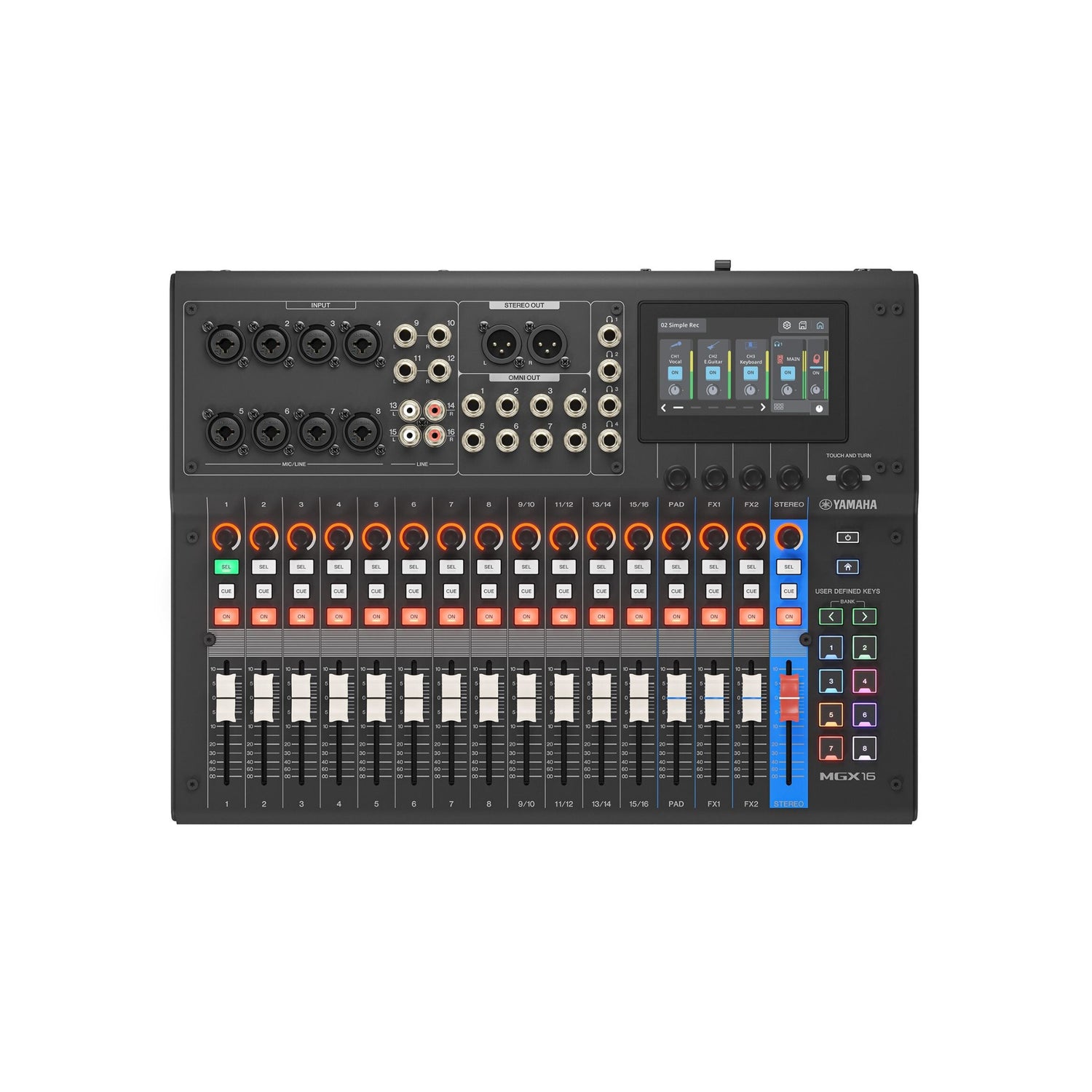

User Interface
| 4.3-inch touchscreen, 16 × 60 mm faders, 16 × SEND knobs, 5 rotary encoders (4 screen knobs, 1 TOUCH AND TURN knob) |
Recording & Playback
| USB MAIN | 22-track recording / 22-track playback (32-bit / 96 kHz) |
| USB SUB | 2-track recording / 2-track playback (16-bit / 48 kHz) |
| microSD Card | 16-track recording / 2-track playback |
Audio Performance
| Sampling Frequency Rate | 44.1 – 96 kHz |
| Signal Delay | < 0.4 ms (INPUT → STEREO OUT @ 96 kHz) |
| Frequency Response | +0.0 / -0.5 dB, 20 Hz – 20 kHz, reference nominal output level |
| Dynamic Range | 125 dB DAC → STEREO OUT, 115 dB INPUT → MAIN OUT |
| Total Harmonic Distortion | <0.002% (20 Hz – 20 kHz @ +4 dBu) |
| Hum & Noise / EIN | -128 dBu typ., Input Gain Max |
| Residual Output Noise | -108 dBu, ST main off |
| Crosstalk | -120 dB, adjacent channels, Input Gain Min @ 1 kHz |
| Gain Range | 86 dB |
Power
| Requirements | DC16 V / 2.4 A, PA-300C AC adapter (100–240 V, 50/60 Hz) |
| Consumption | 38.4 W |
Dimensions & Weight
| Width | 419 mm (16.5 in) |
| Height | 96 mm (3.8 in) |
| Depth | 319 mm (12.6 in) |
| Net Weight | 4.7 kg (10.4 lbs) |
Operating / Storage Temperature
| Operating | 0 – 40 °C |
| Storage | -20 – 60 °C |
Mixing Capacity
| Input Channels | 8 mono + 4 stereo + 1 Sound Pad + 2 FX returns |
| Mix Buses | 8 (mono) |
| Stereo Buses | 1 |
| FX Buses | 2 |
| Cue Buses | 1 |
On-Board DSP Processors & Effects
| Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ) | |
| Guitar Amp Classics (Amp Simulator), Pitch Fix (Voice Changer) | |
| Ducker, Multi-Band Compressor, Compander, Delay | |
| REV-X (Reverb) |
