Allen & Heath ZED-16FX 16-Channel Recording and Live Sound Mixer with FX & USB
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

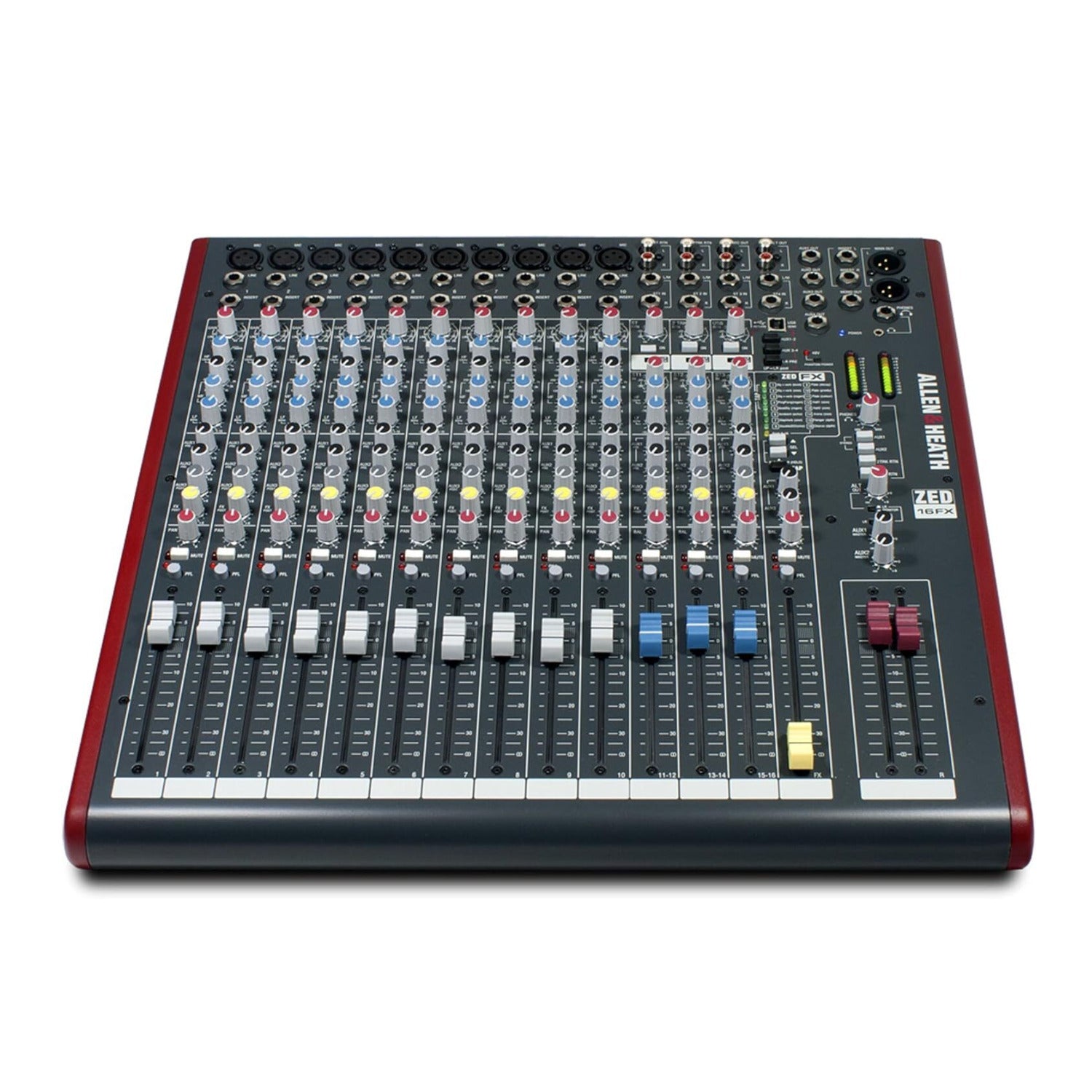

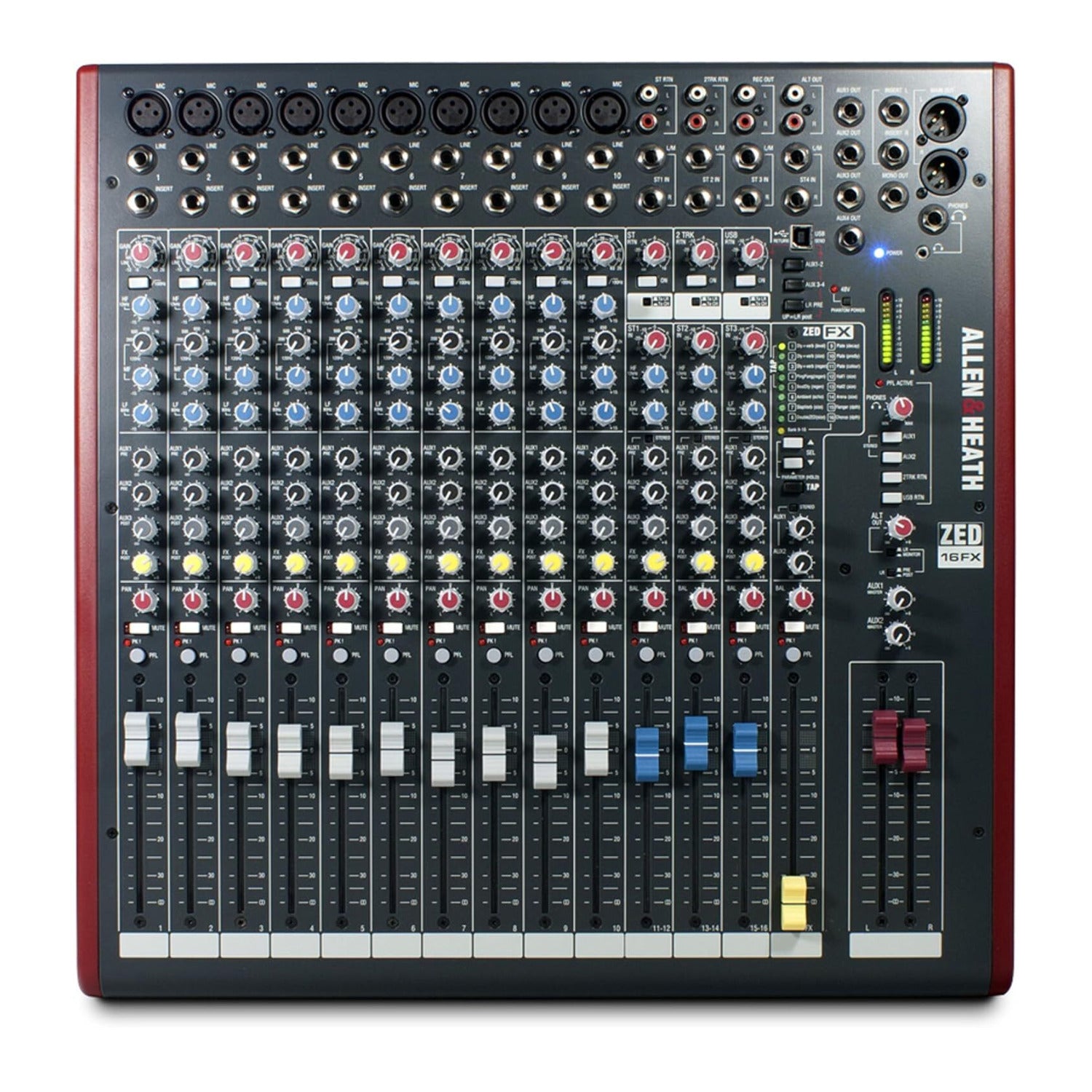

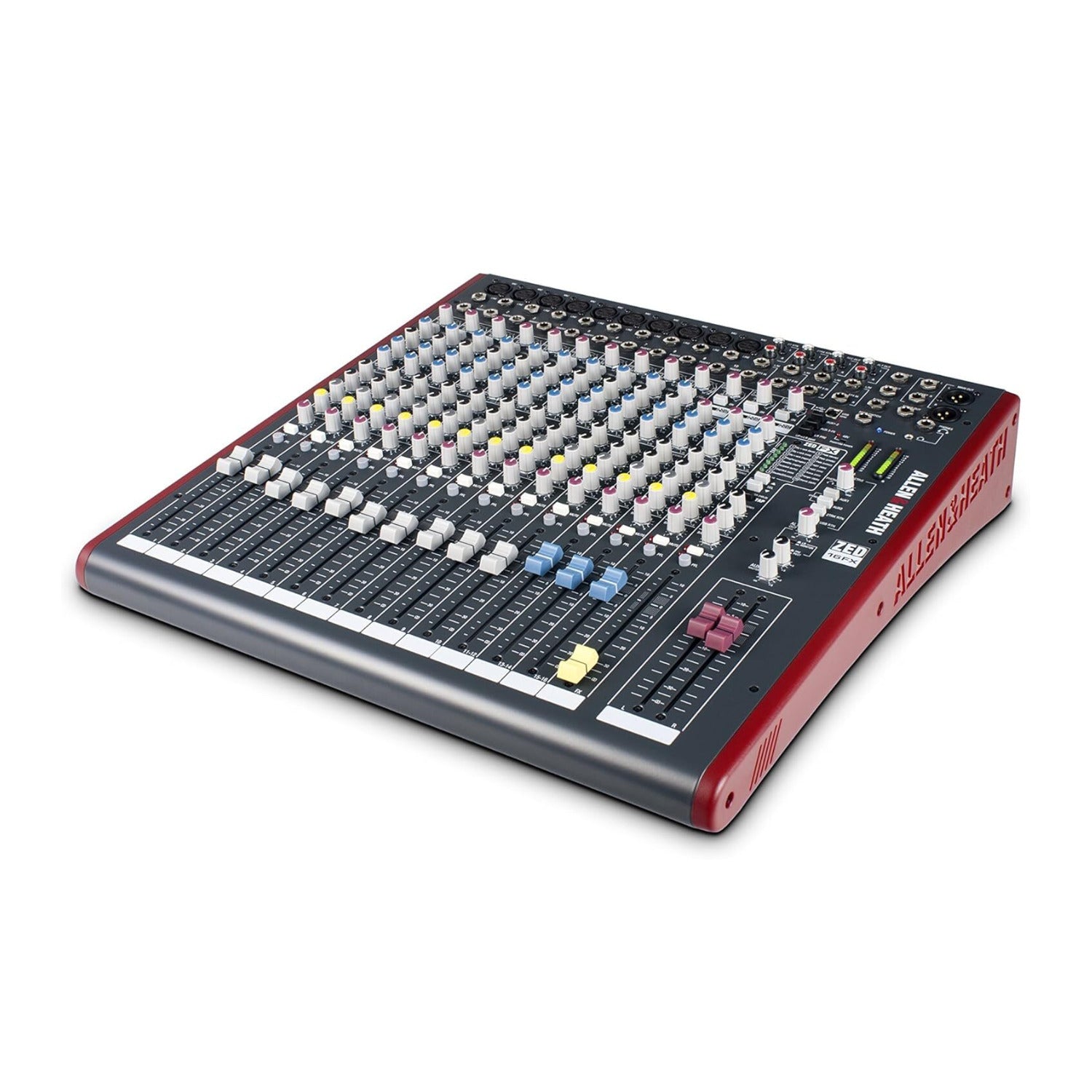

The Allen and Heath ZED-16FX Mixing Console is a flexible, compact mixing desk for today's home studio, project recording and small live sound reinforcement applications. The ZED-16FX features 16 inputs comprised of 10 mono and 3 stereo channels. The mono inputs provide high-quality microphone preamps and three-band EQ. The ZED-16FX features a USB connector for direct integration with Mac and Windows computers and a copy of Sonar LE recording software is included. In addition to all this, the mixer's internal effects engine delivers up to 16 high-quality effects for recording and live sound reinforcement.
Built-in Effects
16 time-delay effects, designed for small groups who don't want to carry around an effects unit with their gear, but still want great quality FX at their gigs and on their recordings.
USB Connection
A USB connection provides a direct connection to Mac and Windows computers. Sonar LE recording software is also included.
10 Mono Inputs
There are 10 mono channels with line and microphone input connections.
Three Stereo Inputs
The three stereo channels feature stereo-paired 1/4-inch phone connectors for stereo devices such as recorders, effects, keyboards, etc.

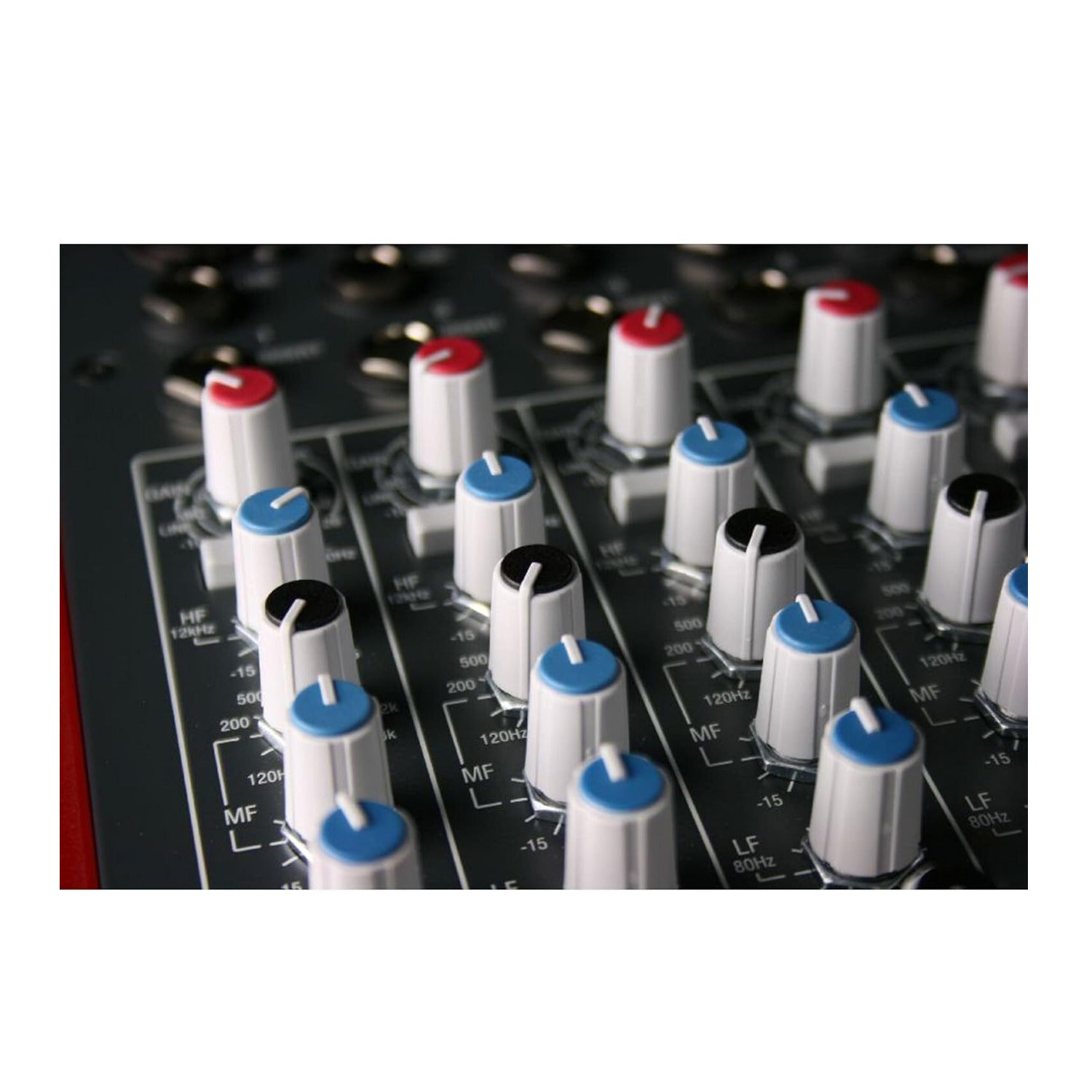

Flexible MusiQ EQ Section
ZED-16FX features a responsive 3-band, swept mid frequency EQ design which utilizes MusiQ - with optimized slope (or Q factor) for equalizing individual instruments.
Inserts
Inserts on all mono channels and stereo output provide flexible routing and control to outboard processors, effects, monitors, etc.
Balanced Outputs
The main output section features a pair of balanced XLR connectors.
- 3-pin XLR Balanced Microphone x10
- 1/4 in Phone Balanced Line x10
- USB Connector
- 1/4 in Phone Mono Out
- RCA Stereo Phono - ALT Out
- RCA Stereo Phono - REC Out
- 3-Band with Mid Sweep On all Mono Channels
- 2-Band On Stereo Channels
- Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 20Hz to 20kHz
- Line in to Mix L/R out 0dB gain: +0.5/-1dB 10Hz to 30kHz
- Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz
- Analogue Headroom from nominal (0Vu): 21dB
- USB in & out headroom from nominal (0Vu): 14dB
- Mic Pre EIN @ max gain 150R input Z 22-22kHz: -127dBu
- Mix L/R out, L/R faders = 0, 22-22kHz: -86dBu
- Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out: 0. 004%
- Mic in to Mix L/R Out, 30dB gain 1kHz: 0. 014%
- Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0. 005%
- Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0. 003%
- USB Audio In/Out: USB 1.1 compliant 16-bit
- Sample Rate: 32, 44.1, or 48kHz
| General | |
| Total # Of Inputs | 16 |
| Mic/Line Inputs | |
| Stereo Line Inputs | ST1 - ST3 1/4 in Phone L/R Stereo |
| In-Line Inputs/Returns | No |
| Aux Sends | 1/4 in TRS Phone x3 4 Total sends, 1 reserved for internal effects |
| Aux Returns | Dedicated USB Return, Aux 1-2, Aux 3-4, L/R Pre |
| Inserts | 1/4 TRS Phone x12 (Mono chs and Main Stereo Out) |
| BUS (Group) Outputs | No |
| 2 Trk Master I/OMain Output | Balanced 3-pin XLR |
| ALT I/O | |
| Monitor Outputs | |
| EQ Section | |
| Solo/Mute | Mute and PFL Solo |
| Channel Level Control | 100mm Fader |
| Trim/Gain Control | Rotary Control |
| Phantom Power | +48V Switched Globally |
| Metering | 12 Segment Peak LEDs |
| Frequency Response | |
| Headroom | |
| Signal-to-Noise Ratio | |
| Total Harmonic Distortion (THD) | |
| USB | |
| Dimensions | 18.3 x 3.85 x 18.3 in (464 x 98 x 465mm) |
| Weight | 18.7 lb (8.5 kg) |
Packaging Info
| Package Weight | 22.5 lb |
| Box Dimensions (LxWxH) | 24.25 x 23.75 x 10.75 in |
